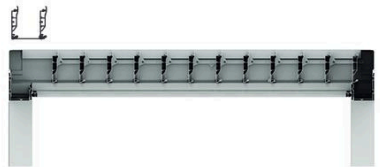

Closed system
90 Oriented

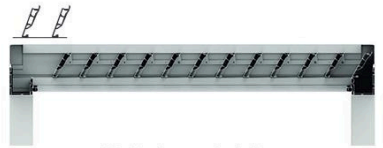

110 Maximum orientation
Plus the rolling root which can be applied in every kind of places, offers a combination of folding and gathering movements that no roofing system has ever done in the world.
The system can be installed on an inclined flat and there is guarantee for water drain. An optional incline can also be provided.Thanks to the panels that can be opened at any angle,it’s possible to utilizefrom a desired amount of sunlight.
Thanks to the folding motion of the panels, it does not lose the shading feature while providing ventilation by the roof.Even when the system is opened, it allows ventilation via special designed profiles without being affected by the rain or snow.
Thanks to the folding motion of the panels, the outside cleaning of the panels can be carried outfrom the inside without going upto the roof. It is possible to color it with electrostatic oven paint so that application can be made in every desired color.Thanks to electrostatic oven paint, it’s a long-lasting product. The Rolling roof is the best solution for the restaurants and cafes where smoking is not allowed normally.
Protection from the sun
Natural ventilation
Adjusting of temperature
Stability in wind
Protection from rain, excess water drainage
Protection from snow
Blade dimensions 222 mm x 40 mm.
Max blade length 4000 mm.
Orientation 0° to 110°
Weight 35 kg/m2
Materials // 6063 T5 aluminum,
stainless steel and delrin.
RAL Color Selection
Coloring of your choice,according
to the RAL color standart.
Electrical Motion
Capability of electrical motion and
remote control.
Great resistance to weather
conditions of rain, snow hum
idity and wind.
Wind Load Resistance Test
UNE-EN 13659: 2004 Class 6 // (approx. 112 km/h) not tested up to 190 km/h.No breakage was detected.
Snow Load Resistance Test
Standart EN-1999 EUROCODE 9/100kg/m2 (including its own weight) aluminum structures project
Rain Test
Standard UNE-EN 12056-3 // (0.03 l/s max) Fixed heavy rain approx 108 1.m2/h(structures+lamels)

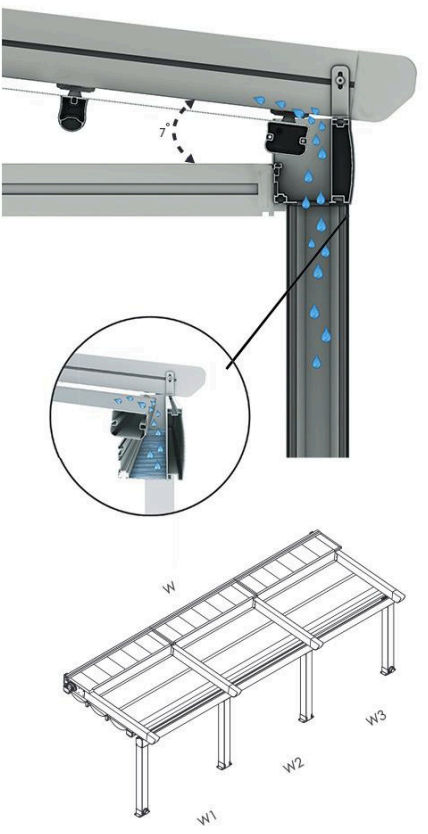

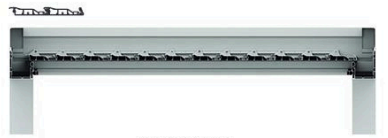

Rainwater Drainage

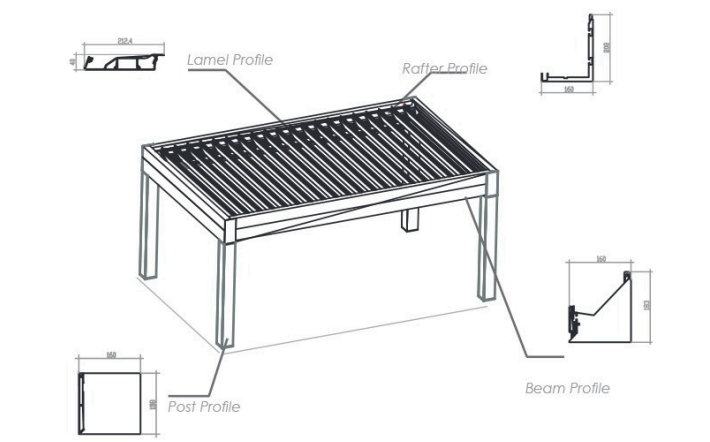

Water is transferred from the grooves on the aluminum lamel profiles to the edge profiles, water is transferred to the feet thereafter.
Safety
Hidden drains and electrical lines.
Finishes
In accordance with specifications for Qualicoat, Qualideco and Qualanod. RAL colour, anodized or wood effect finishes are available. 10 years of warranty for finishes.

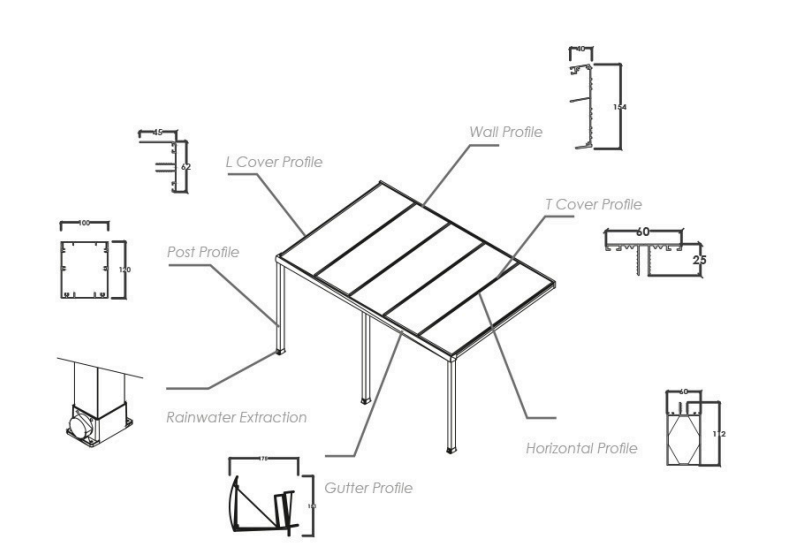

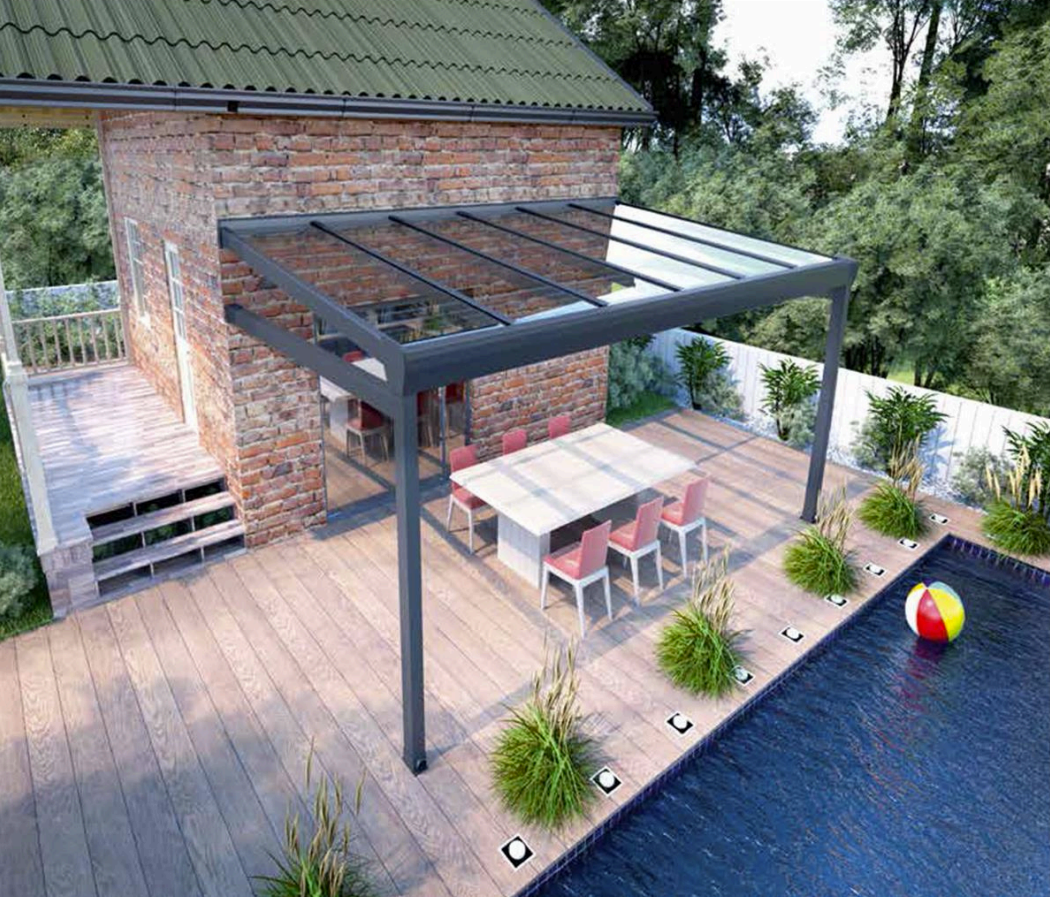

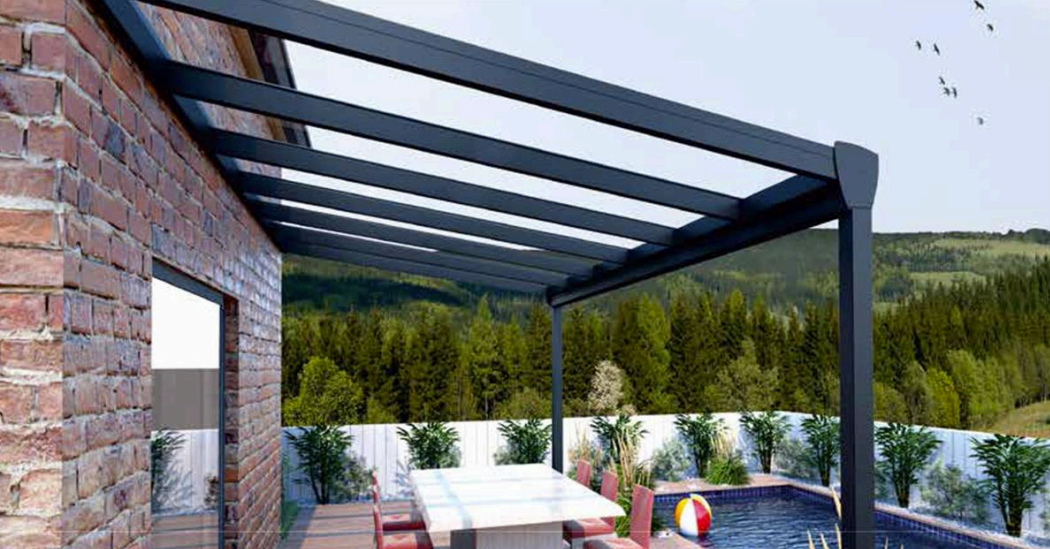

VERANDA
Spend more time outside
and enjoy the fresh air!
Our veranda allows you to spend more time in your garden and enjoy the fresh air. The extra living space that allows four seasons of use will increase the value of your home and protect you against the effects of sun, rain and wind. You will enjoy the warmth of the sun in hot weather and have extra protection in cold weather.
Our veranda system is the perfect model when you’re looking for a top quality patio awning with a slightly lower budget. It’s simple and functional design has made this model a popular choice in many gardens.
You will enjoy your winter garden, which will be formed by the combination of aluminum profiles and polycarbonate plates with strong and high impact resistance or glass ceiling material, for many years without the need for maintenance.
It is perfectly integrated with other Alunoval products zip curtain, guillotine window, door-window systems, and allows you to benefit from your space in four seasons. You can choose a wide range of colors adapted to your needs or the environment where you want to install the pergola.
Materials // 6063 T5 aluminum,
stainless steel and delrin.
RAL Color Selection
Coloring of your choice, according
to the RAL color standart.
Great resistance to weather
conditions of rain, snow hum
idity and wind.
Wind Load Resistance Test
UNE-EN 13659: 2004 Class 6 // (approx. 112 km/h) not tested up to 190 km/h. No breakage was detected.
Rain Test
Standard UNE-EN 12056-3 // (0.03 l/s max) Fixed heavy rain approx. 108 1.m2/h (structures + lamels)

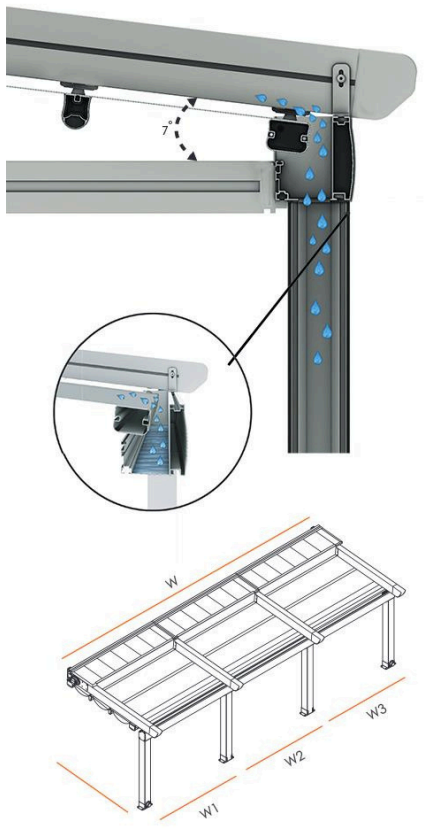

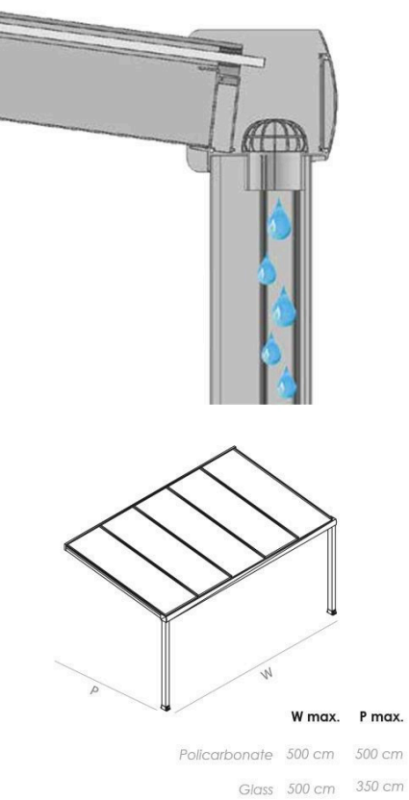

Rainwater Drainage
Rainwater collected in the gutter profile by flowing over the roof is transferred to vertical posts and water discharge is provided.
Finishes
In accordance with specifications for Qualicoat, Qualideco and Qualanod. RAL colour, anodized or wood effect finishes are available. 10 years of warranty for finishes.
Protection from the sun
Stability in wind
Adjusting of temperature
Protection from rain, excess water drainage
Protection from snow
TECHNICAL PROPERTIES
| System Visible Width | Fixed Vent | 54 mm 60 mm |
| System Thickness | Fixed Vent | 60 mm 60 mm |
| Glazing Thickness | Â | 28 mm |
| Thermal Break Thickness | Â | 20-24 mm |
PERFORMANCE VALUES
| TS EN 12207 | A’r Permability | NA |
| TS EN 12208 | Water Tightness | NA |
| TS EN 12210 | Wind Load Resistance | NA |
| TS EN 12210 | Safety Wind Load Resistance | NA |

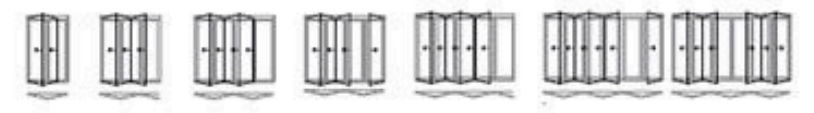

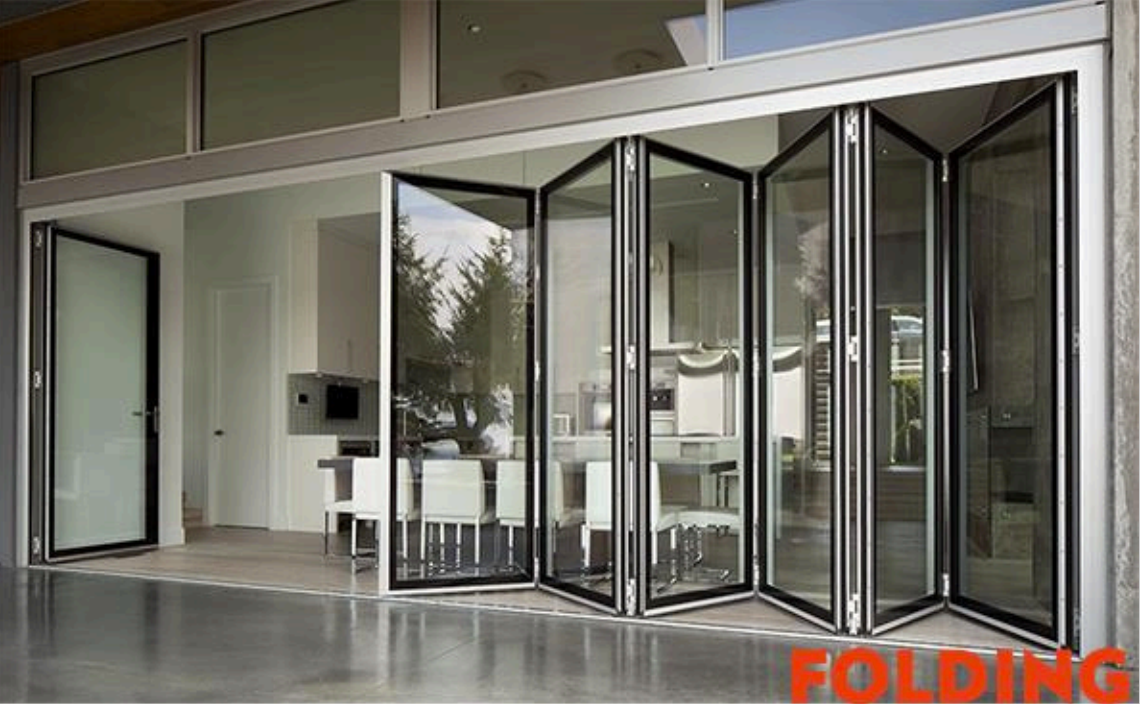

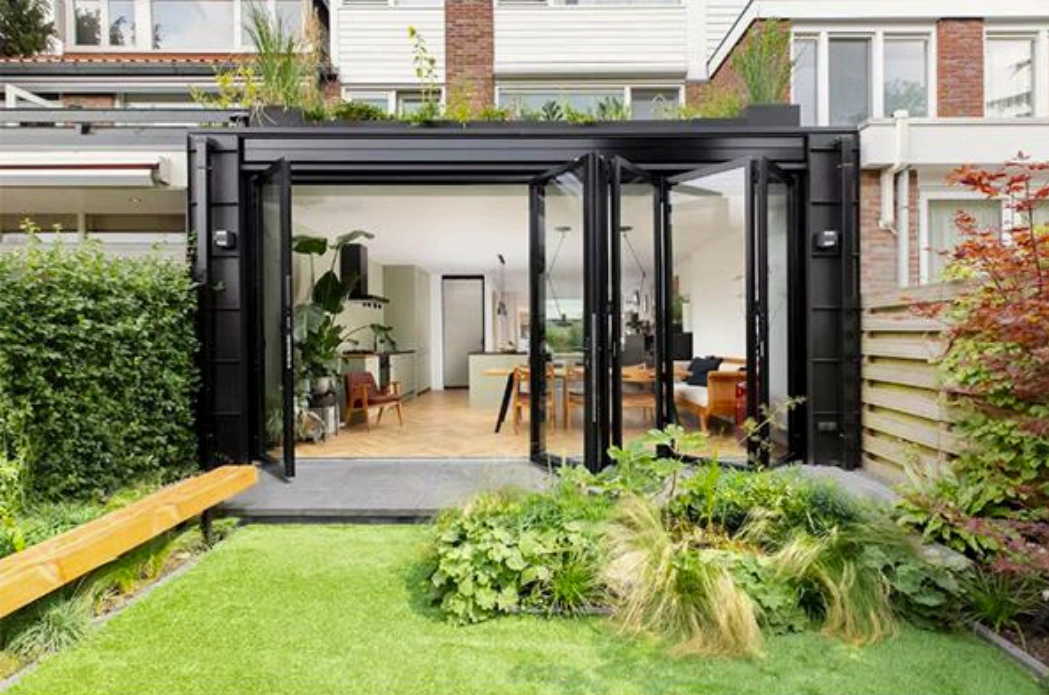

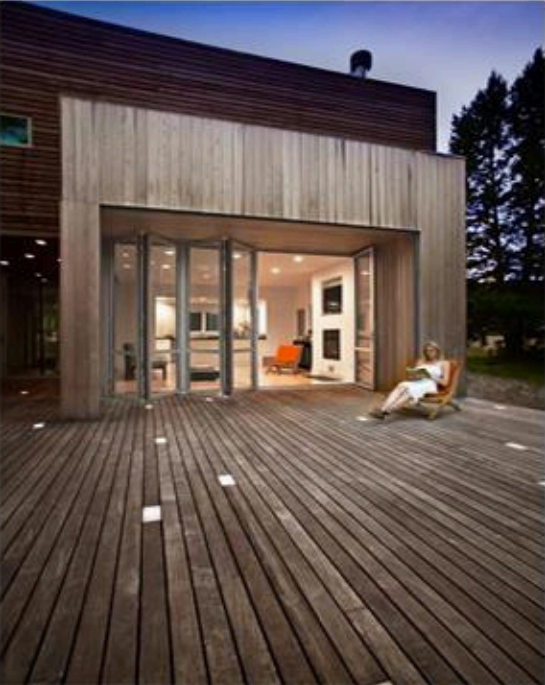

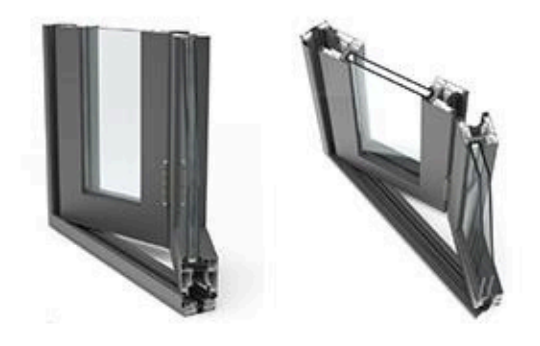

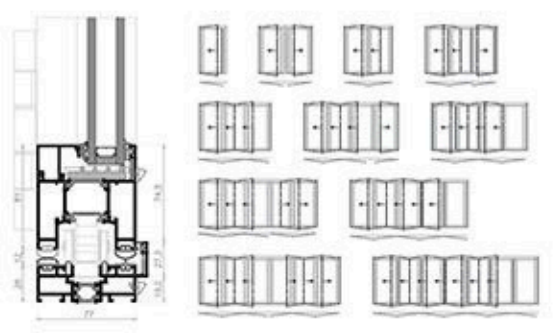

The insulated SF60T siding folding door system, which combines its top-hung mechanism with minimal aesthetics with its design, offers smooth performance and long-lasting functionality.
SF6OT offers many different advantages to its user such as silent operation, weather resistance and low maintenance.
Thanks to itssmart design, this system can be used by opening in or out, and the sashes can be parked on both sides.
PANAROMAÂ
Heavy door vent that can be collected to the right or left can beapplied in the system above 3 meters high.
With the system with a carrying capacity of 150 kg per vent, modules that can be made with 2, 3, 4, 5, 6 and 7 vents can be applied. All the vents can be collected on one side or they can be collected equallyon both sides if desired.
Combining a minimal design approach with aesthetic lines, the insulated PANORAMA folding door system offers users highperformance and long period functionality.
It is an important element of the structures with its features such assilent operation ability, resistance to external weather conditions andlow mainte- nance cost. In addition, intense water inflows to the system from outside are prevented with the integrated hidden grating.

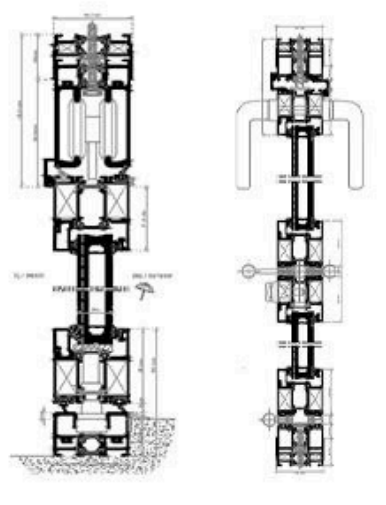

TECHNICAL DRAWING

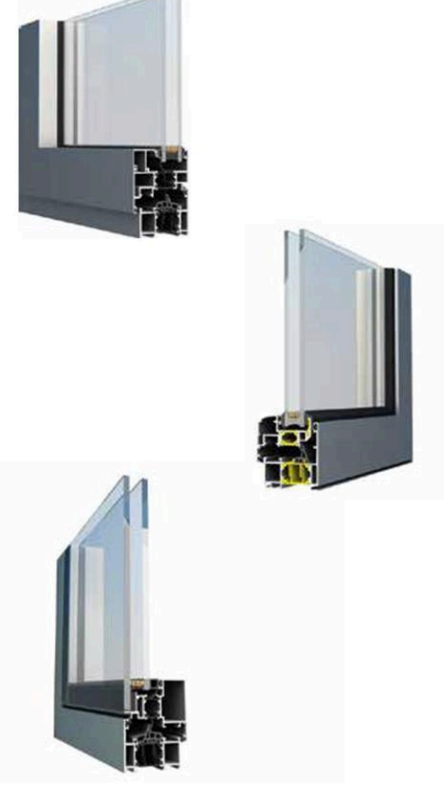

ICON 70
High performance
system with various
functionalities
ICON 70 is an innovative high performance windows and door system that is combining strength, safety, sustainability and aesthetic design.
The system ICON 70 is ALUnoval’s proposal for advanced insulated casements, which meets the high standards of all advanced markets and incorporates a modern design that’s intended for realizations of exterior architectural building elements requiring thermal and acoustic insulation.
ICON 70 combines efficient solutions for a wide variety of functional, architectural and design requirements in one system. It is the ideal solution for projects that require high performance and premium aluminum architecture.
Hidden Vent & bonded Vent options are available for this system.

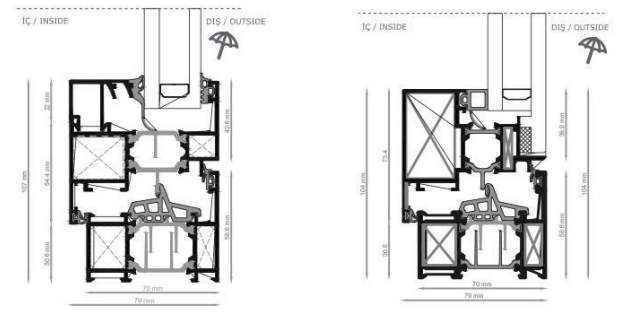

TECHNICAL PROPERTIES
| System Visible Width | Fixed Vent | 50-66 mm 42-63mm |
| System Thickness | Fixed Vent | 70 mm 79 mm |
| Reinforced Mullion Depth | Â | 145 mm |
| Moment Of Inertia Of Reinforced Mullion | lx ly | up to 162,98 cm up to 44,58 cm |
| Glazing Thickness | Â | 16-60 mm |
| Min. Sash Dimensions | Â | 350 mm x 700 mm |
| Max. Sash Dimensions | Â | 1700 mm x 2800 mm |
| Thermal Break Thickness Max. Sash Weight | Â | 34 mm 180 kg |
*The dimensions and values given above are given for ICON 70 standard details.
PERFORMANCE VALUES
| Air Permability | Class 4-600 Pa |
| Water Tightness | E 900 – 900 Paa |
| Wind Load Resistance | C 1400 (1400 Pa) |
| Safety Wind Load Resistance | 2100 Pa |

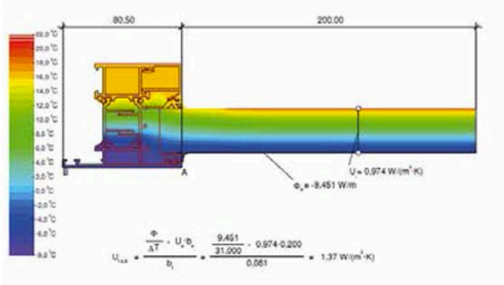

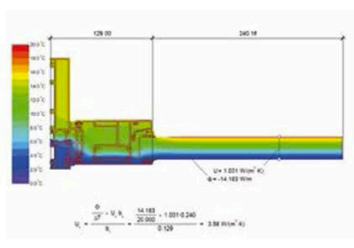

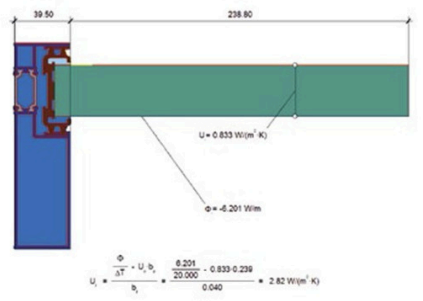

| Thermal Insulation | Uw:0,92 W/m2.K |
This calculation has been made with 0,60 W/m2.K Ug value glass filling

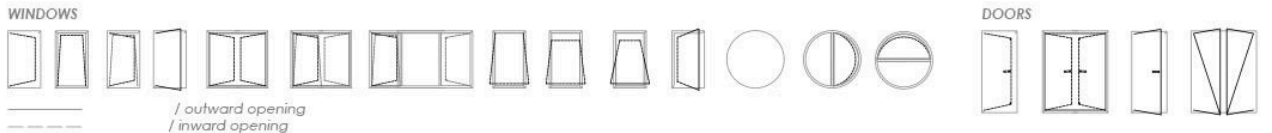

SYSTEM OPTIONS
GUILLOTINE
Open a window to any
view of the world.
Our guillotine is a vertical retracting windows system which is suitable for the coverage of a building opening, especially when saving space is required.
The guillotine window is a vertically sliding, remotely controllable motion system that promises to offer you unique views of the skyline. This series aims to maximize the size and openings of modern architectural structures.
The combination of thin aluminum profile frames with glass results in the system’s surprising and unique elegance, providing maximum transparency and excellent performance.
It works with an extremely simple mechanical lever logic and the electric motor that provides minimum energy consumption can be controlled by remote control. The aluminum frames of the system provide sealing capability to the window.
Our giyotin window profiles offer fully customizable multi-panel combinations and endless color options in all RAL colors or anodised aluminum.
Tested resistance of extensive
exposure to the sun.
Certified protection from
harmful ultraviolet radiation.
Capability of electrical motion
and remote control.
Great resistance to weather
conditions of rain, snow hum
idity and wind.
Ease of use
Either wireless or wired operation, opening the device at the touch of a button.

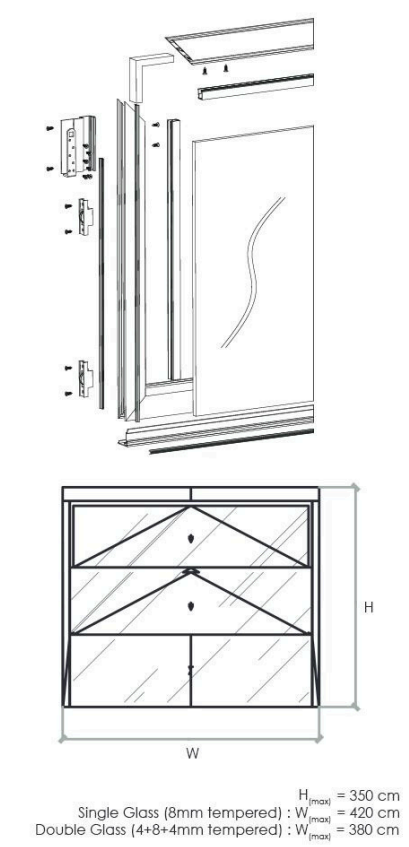

System OperationÂ
Motorized operation via tubular motor. The panes are slid vertically either upwards or downwards, and parked behind a fixed pane.
Safety
Hidden drainage and power channels
Materials
6063 15 aluminum, stainless steel
Motor specifications
24vdc motor (low voltage) additional earthed connection more resistant to electric shocks.
Surface
Qualicoat, Qualideco and Qualanod certified painted, wood-patterned and anodized products are guaranteed for 10 years.

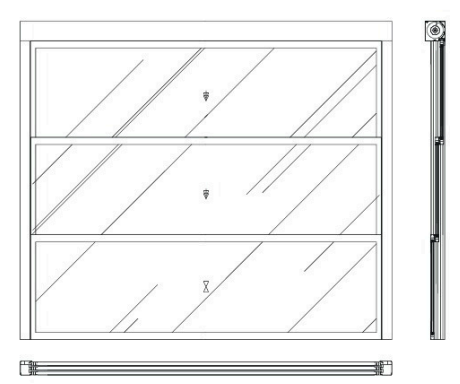

Close ModeÂ
Open Mode

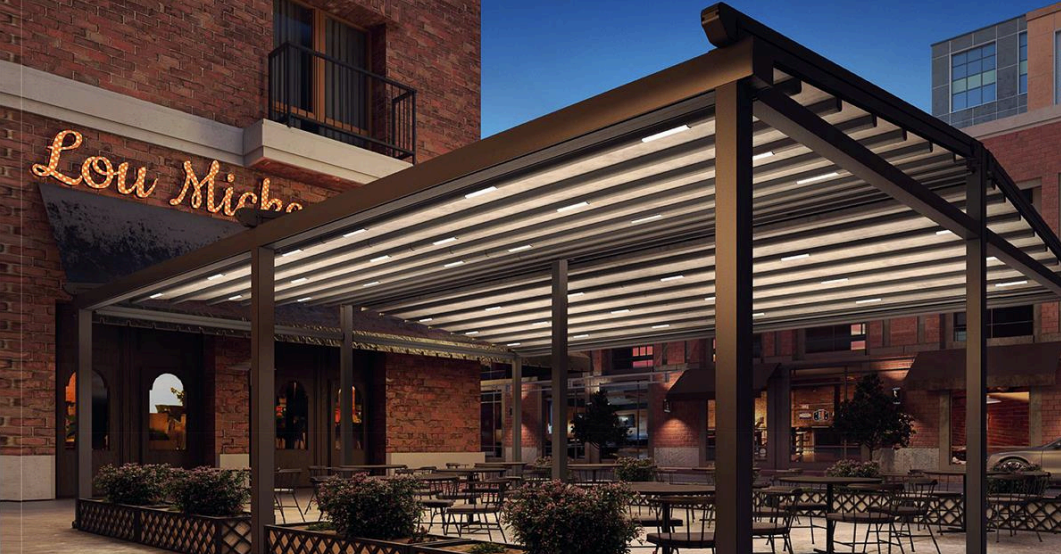

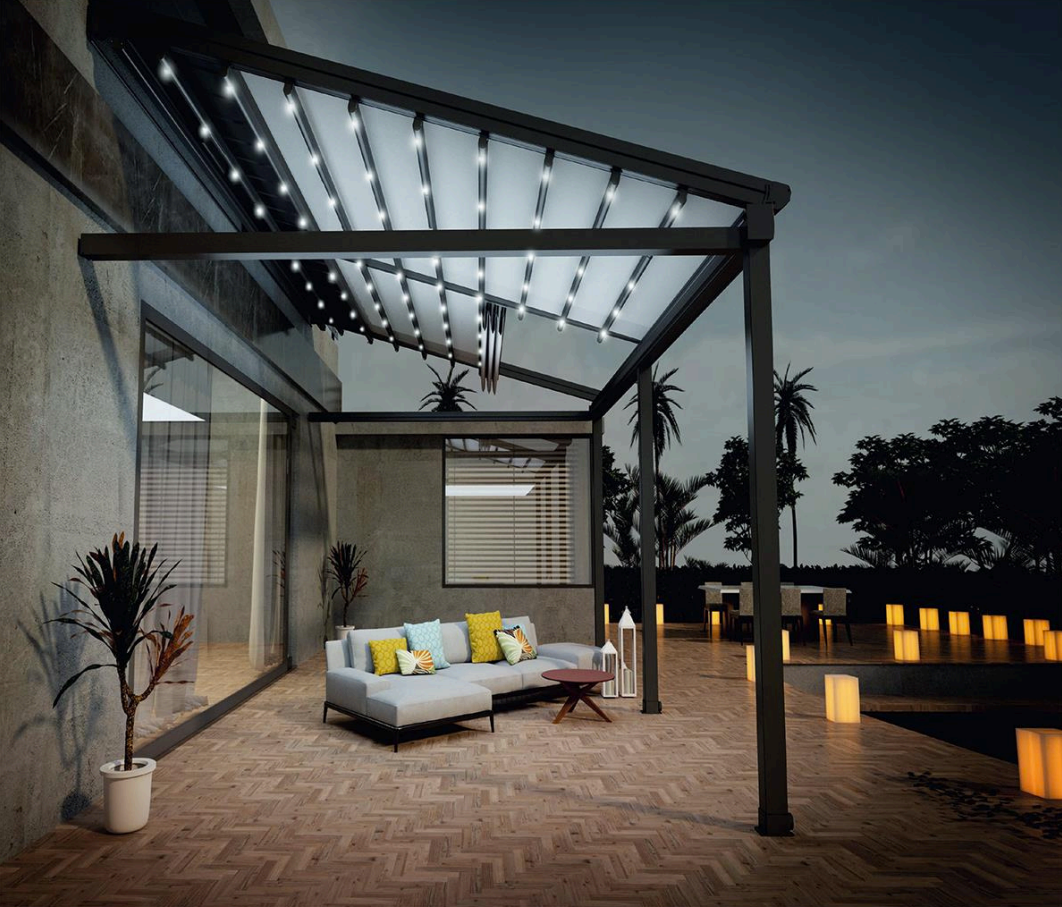

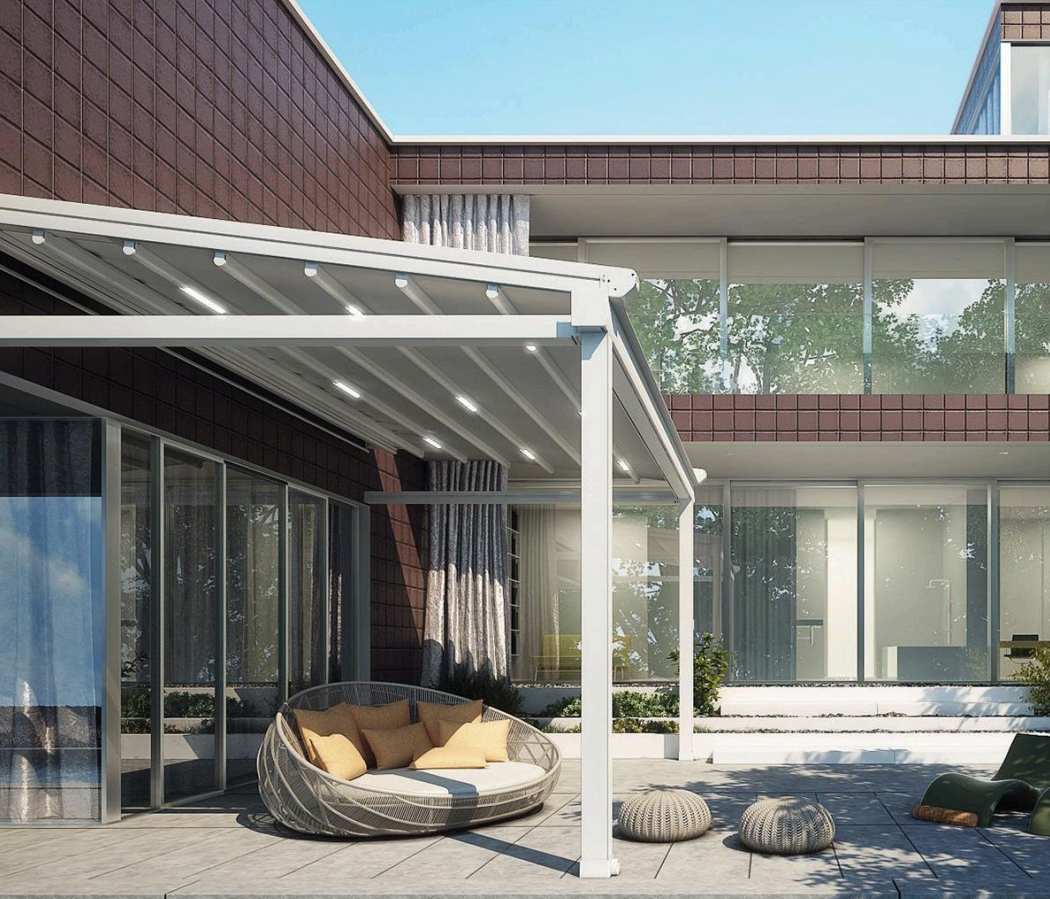

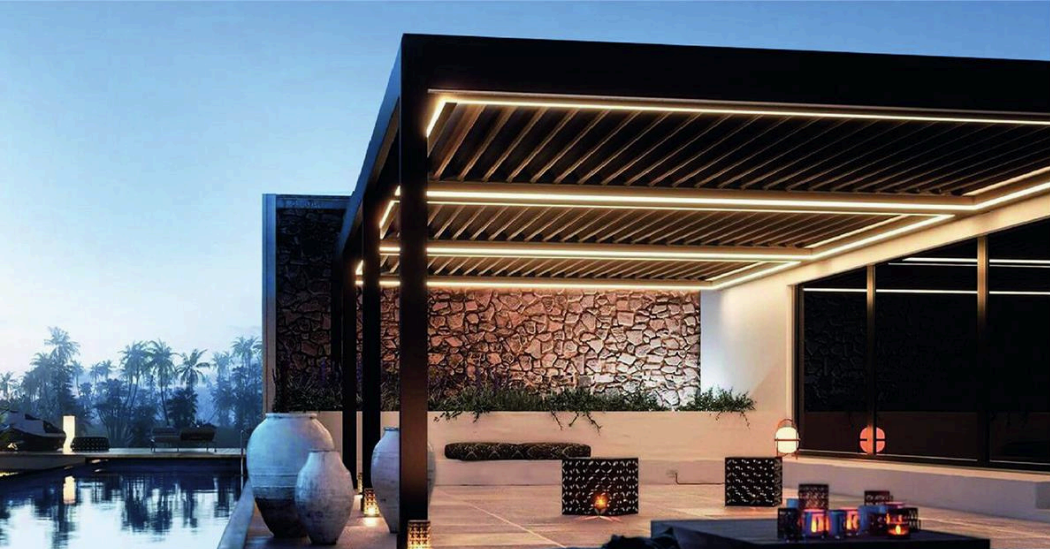

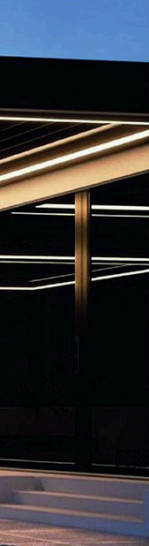

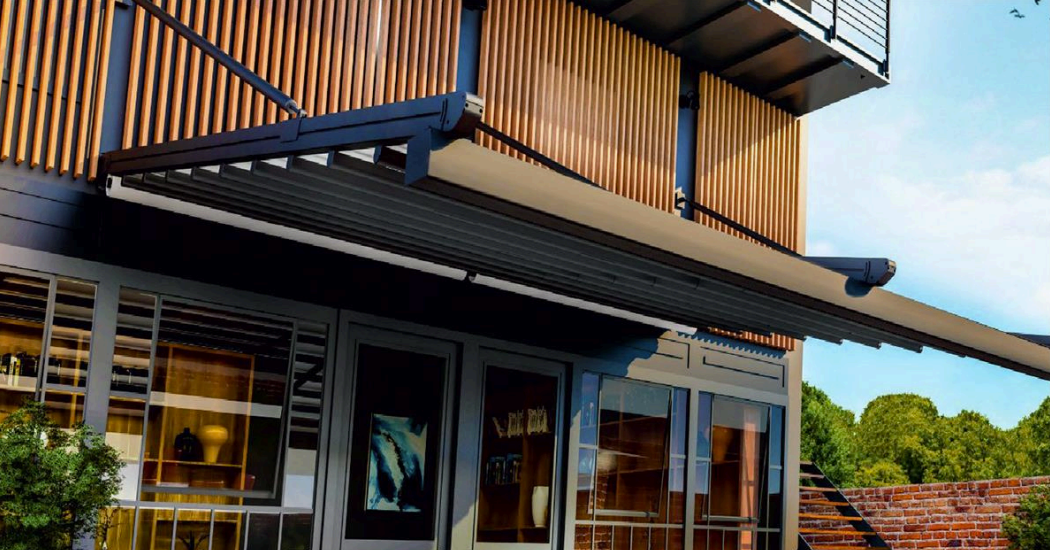

PERGOLA
During the four seasons of the year,
you can enjoy the open air.
Our pergola system is an ideal automatic pergola system that can be automatically openable and closable, allowing you to benefit from your garden in your professional areas or home all year round.
Block-out 3 fairy Vinyl PVC fabric is used as the ceiling covering surface, which is the most preferred and reduces the heat and light to minimum values. Patented special design 10-wheeled car is used to increase this fabric construction game.
Other Luxial products, zip curtain,guillotine window, basic 56/60, SF 60 T door-window systems can be integrated perfectly.
Integrated LED lighting can be used for ambient lighting thanks to the LED channels on the beams even when the ceiling is open. It can be applied in all professional commercial areas such as cafes, restaurants, hotels or personal terraces and gardens, it allows you to expand your usable spaces and adds spaciousness to your existing spaces.
For system security, a special channel has been designed in the front leg profiles, through which electrical lines can pass, which is invisible from the outside and cannot be touched.
Tested resistance of extensive
exposure to the sun.
Certified protection from
harmful ultraviolet radiation.
Capability of electrical motion
and remote control.
Great resistance to weather
conditions of rain, snow hum
idity and wind.
Ceiling Movements
In the opening and closing of the fabric in the ceiling, the patented special design has been improved by using 10-well drive system.
Rainwater drainage
Free flow water drainage system
Safety
Hidden drainage and power channels.
Materials
6063 15 aluminium, stainless steel
Motor specifications
24 vdc motor (low voltage) additional earthed connection more resitant to electric shocks.
Surface
Qualicoat, Qualideco and Qualanod certified painted, wood-patterned and anodized products are guaranteed for 10 years.
Protection from the sun
Natural ventilation
Adjusting of temperatureÂ
Protection from rain,
excess water drainage

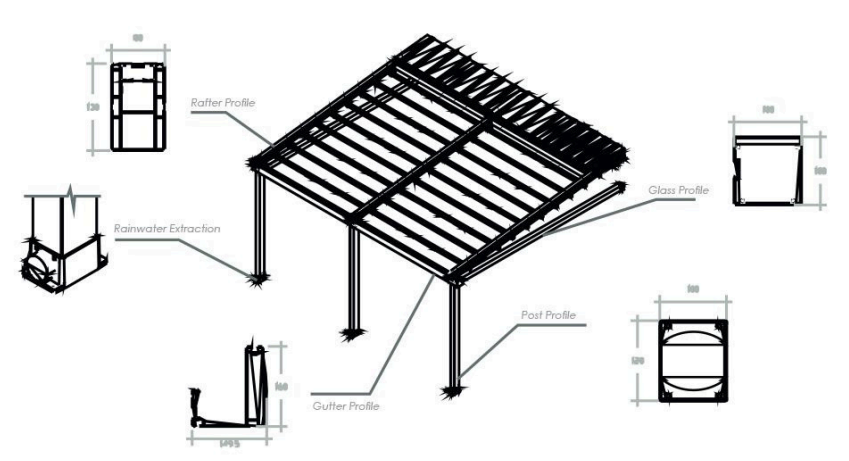

PERGOLA
Reshape your spaces to live all
seasons you are in and give
yourself the grace to be there.

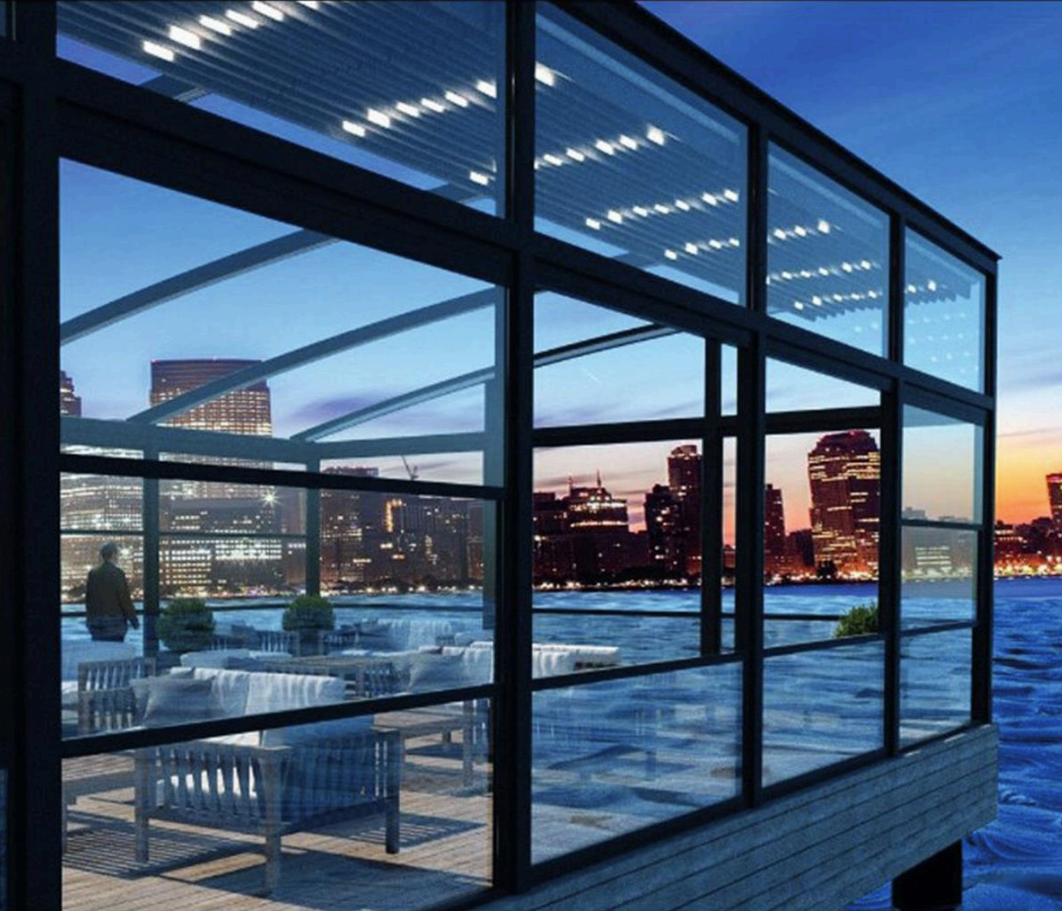

Other system is a new retractable pergola which is specially designed for adjustable coverage and shading. Reinforced construction and improved aesthetics, when maximum coverage of smaller outdoor spaces is required.
Block-out 3 fairy Vinyl PVC fabric is used as the ceiling covering surface, which is the most preferred and reduces the heat and light to minimum values. Patented special design 10-wheeled car is used to increase this fabric construction game.
Other Alunoval products,zip curtain, guillotine window, Basic 56/60, SF 60 T door-window systems and LED lightning system can be integrated perfectly.
It can be applied in all professional commercial areas such as cafes, restaurants, hotels or personal terraces and gardens, it allows you to expand your usable spaces and adds spaciousness to your existing spaces.
For system security, a special channel has been designed in the front leg profiles, through which electrical lines can pass, which is invisible from the outside and cannot be touched.

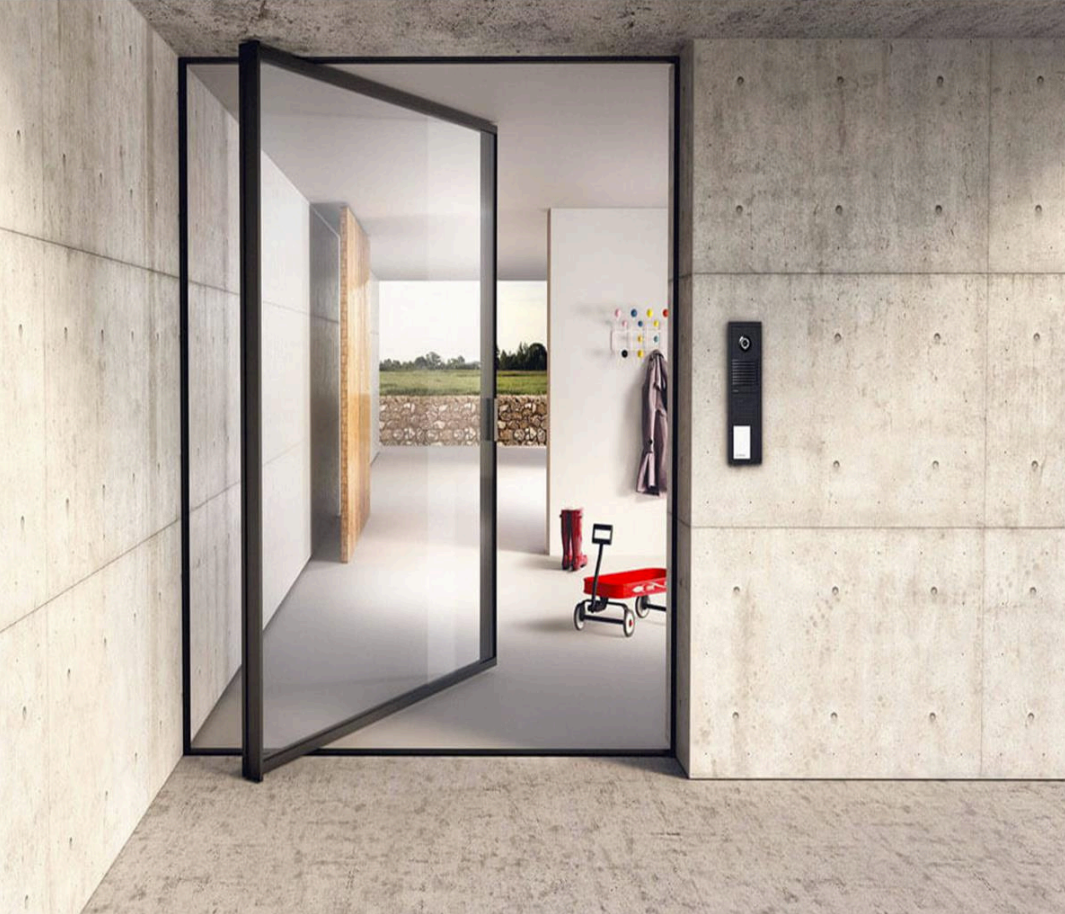

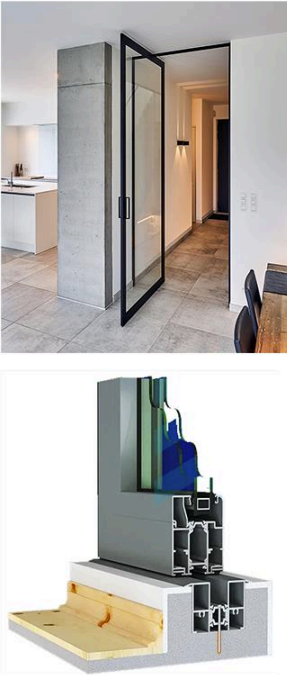

Pivot Doors
Unique Passion For Use

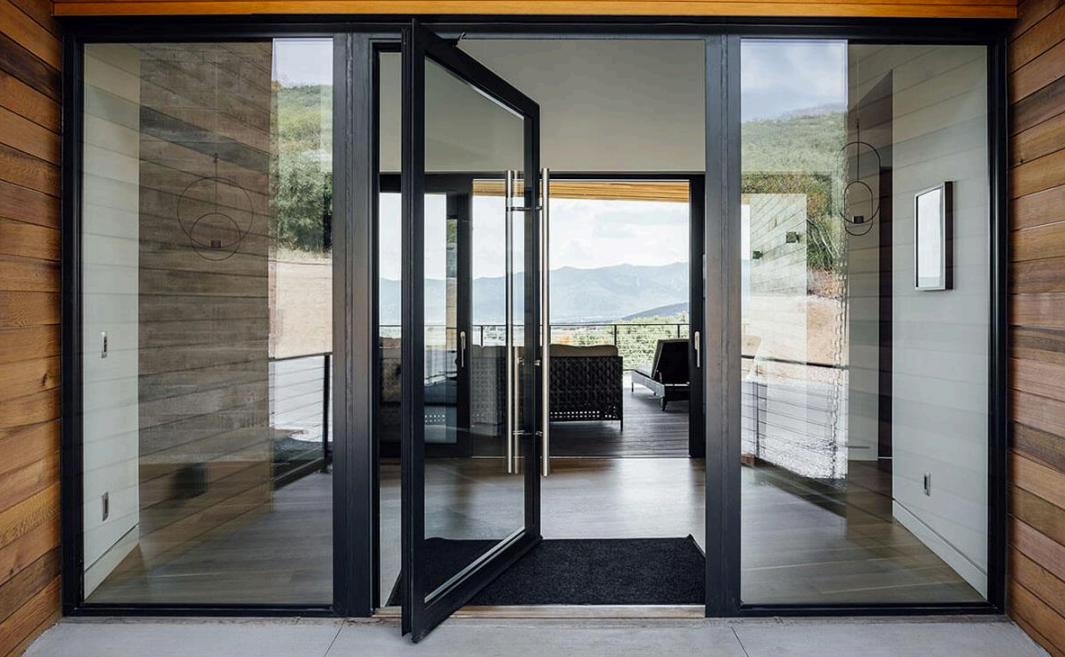

Aluminium Pivot Doors
Aluminium pivot door models specially developed for high-level building entrances in homes and workplaces can be used for original solutions in other areas. It has stylish models that add a glamorous appearance to buildings, and its appearance, ease of indoor ventilation. It is produced in rectangular and square scale models by taking special measurements for the place. Production can be made in asymmetrical model in order to achieve the best performance in special usage conditions for spaces. It provides comfort with its ergonomics of use at the entrance and exit of the building. It contributes to the spacious and spacious appearance of the interior. It brings an important design alternative to the classical right or left hinged door system with its pivot movable opening models. Despite its large dimensions, it eliminates the inaccuracies experienced in classical doors with its balanced weight.
Among the aluminium pivot door models, there are designs with or without glass. The expansion can be performed to the right and left in the horizontal axis, and to the bottom and top of the vertical axis. The use of movable hinges gives the pivot door models an aesthetic appearance in opening and closing. Ease of use and practicality turn into a passion. As we mentioned at the beginning, aluminium pivot door models provide the best solution for buildings with high elevation entrances. It is preferred in many areas such as residences, social facilities, shopping malls, commercial office buildings, restaurants, recreational facilities. Production can be made in models with a width of 2 meters and a height of 4 meters. In all models, high-strength aluminium profile casing is used to increase the strength and ease of use. Aluminium is very light compared to other heavy carcasses, making it very easy to use. It is easy to use with its lightness in all sizes, and it feels like it doesn’t exist at all.
Security
Quality
Insulation
Modern Design
Customer Satisfaction

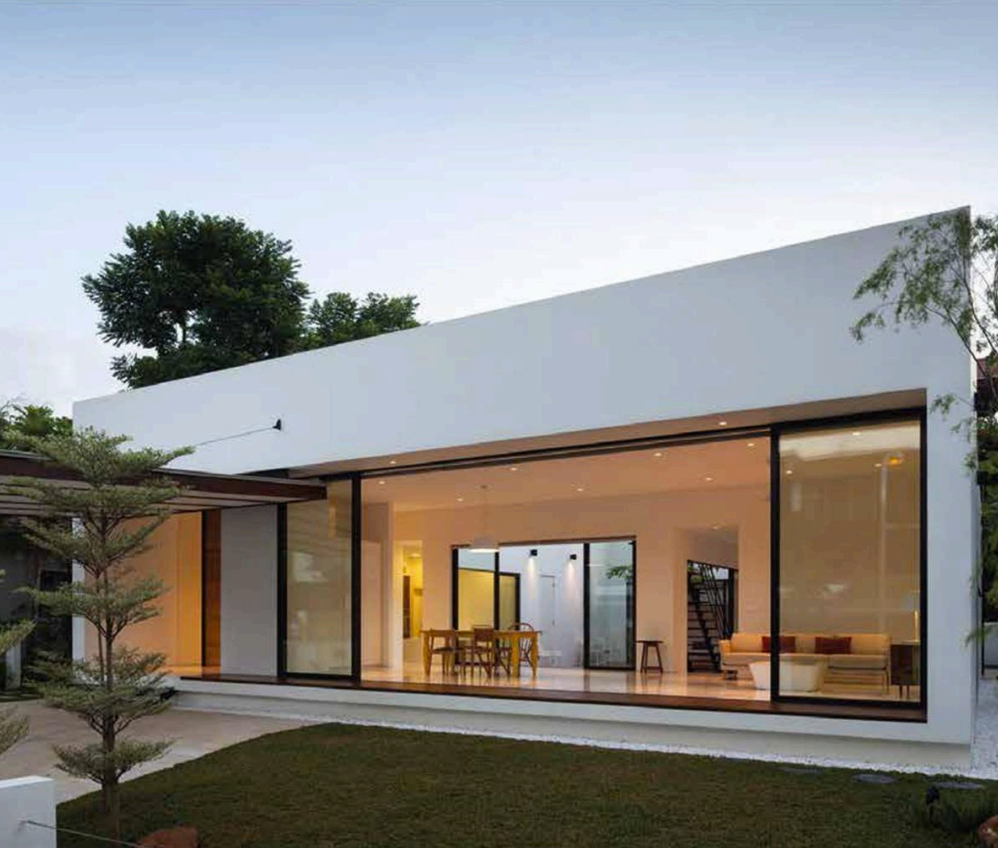

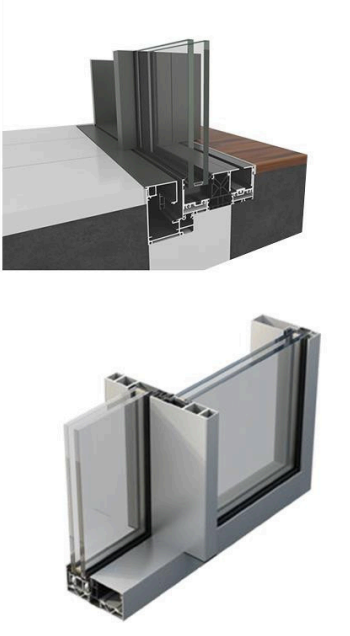

PRIME SLIDE
Be a part of the
premium view
In the Prime system, the side case and bottom case can be completely embedded into the floors. In this way, 20% more transparent area and view are provided compared to standard systems.
The purpose of the Prime sliding system is to provide and connect the objective interaction between the indoor and outdoor environment. With the case being completely recessed into the ground, users are provided with a floor transition between inside and outside, and the sliding system is no longer an obstacle between indoor and outdoor space.
With the steel bearings embedded in the case, it is possible to make wide and high sash up to 12 square meters.
With its EPDM wick structure, air and water tightness and wind load resistance and thermal performance values are provided at a high level.
The system allows to use glass up to 36 mm with its profiles with wall thicknesses between 1.8 mm and 2 mm.

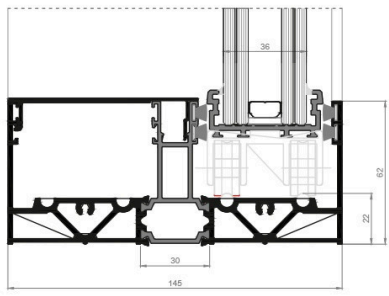

TECHNICAL PROPERTIES
| System Frame Depth | 62 mm |
| System Visible Middle Witdh | 35 mm |
| System Sash Depth | 50 mm |
| System Thickness | 145 mm |
| Glazing Thickness | 36 mm |
| Min. Sash Dimensions | 3000 mm |
| Max. Sash Dimensions | 4000 mm |
| Thermal Break Thickness | 30 mm |
| Max. Sash Weight ; | 950 kg |
PERFORMANCE VALUES
| TS EN 12207 | Air Permability | NA |
| TS EN 12208 | Water Tightness | NA |
| TS EN 12210 | Wind Load Resistance | NA |
| TS EN 12210 | Safety Wind Load Resistance | NA |
| EN 10.077-2 | Thermal Insulation | Uw:0,85 W/m2.K |
This calculation has been made with 0,60 W/m2.K Ug value glass filling

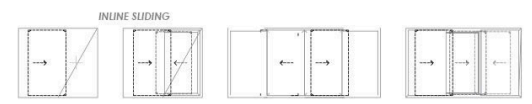

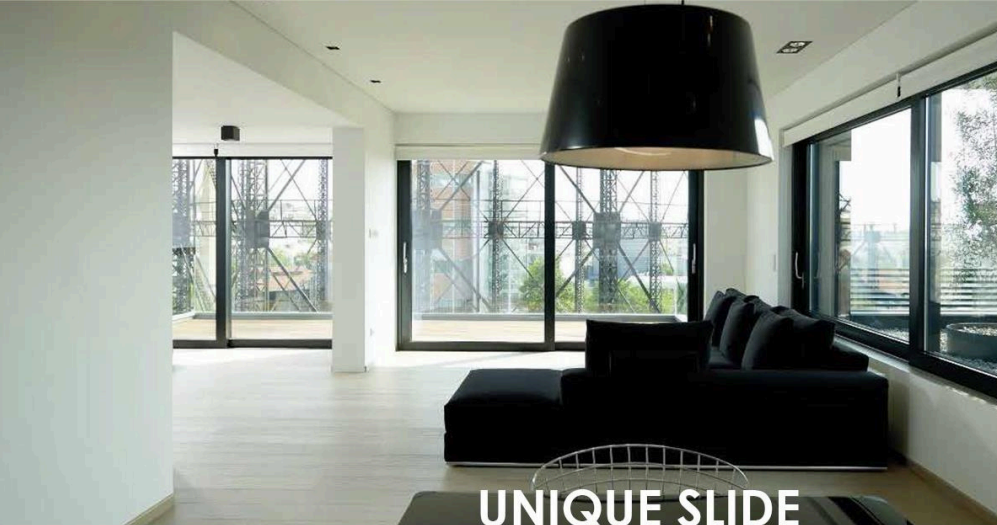

UNIQUE SLIDE
The Unique reinvention
of sliding systems

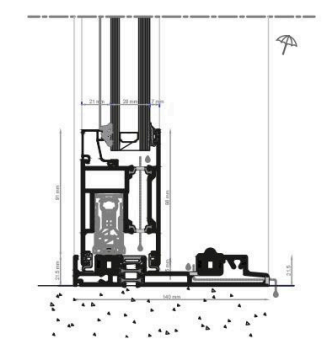

With a low-threshold Frame profile of only 21.5 mm height, users are provided with the opportunity to move on the ground easily.
The system allows the use of glass up to 46mm in the frame and 40mm in width on the sash.
The system, which can be collected with a 90-degree cut, provides a minimum profile view with only 25 mm frame profile, and is also one of the successful Lift & Slide systems in the market.
The Unique Slide sliding system, designed with the principle of providing minimum profile usage and easy manufacturing and assembly possibilities, maintains its distinctive place among the industry rivals with its innovations. With its 50 mm visible width alternative profiles, narrow clamp option is provided, which provides maximum panoramic view to the users. It offers superior thermal performance thanks to its 18 mm polyamide barrier structure and EPDM wicks. With its Euro-Groove channel structure, it is in harmony with the opening accessories of different brands and types. The system allows multi-point locking.
TECHNICAL PROPERTIES
| System Frame Depth | Â | 140 mm |
| System Visible Width | Fixe Vent | 25 mm 98 mm |
| System Sash Depth | Â | 56 mm |
| System Middle Section Depth | Â | 129 mm |
| Min. Glazing Thickness | Â | 10 mm |
| Max. Glazing Thickness | Â | 40 mm |
| Min. Sash Dimensions | Â | 800 mm x 1900 mm |
| Max. Sash Dimensions | Â | 2600 mm x 3000 mm |
| Thermal Break Thickness | Â | 15-18 mm |
| Max. Sash Weight | Â | 400 kg |
PERFORMANCE VALUES
| Air Permability | NA |
| Water Tightness | NA |
| Wind Load Resistance | NA |
| Thermal Insulation | Uw: 1,44 W/m2.K |
This calculation has been made with
1,0 W/m2.K Ug value glass filling

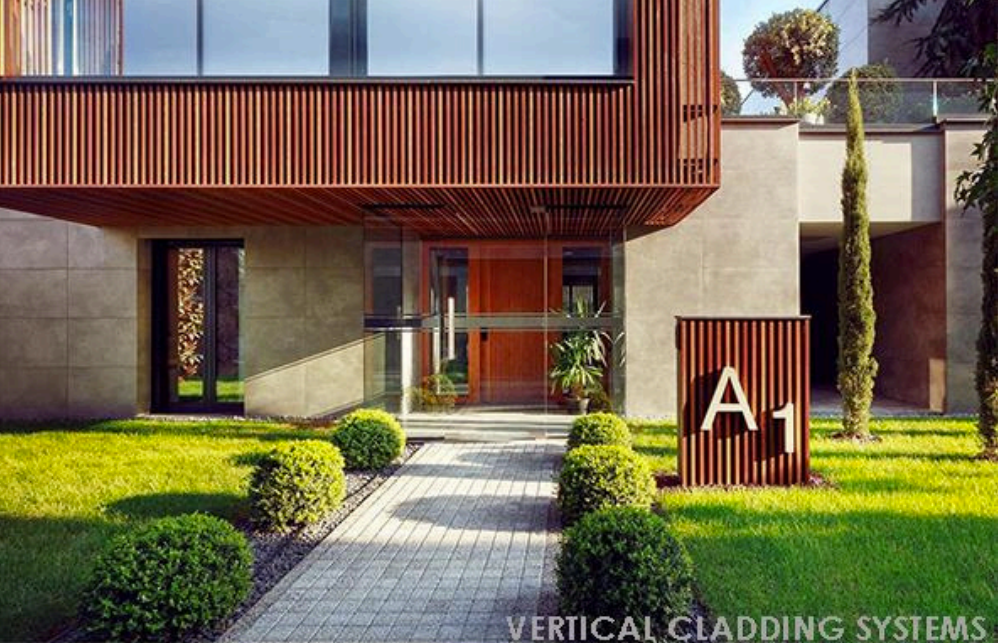

Thanks to the system, which can also be used in existing structures along with new structures, it is ensured that the facade gets air on the surfaces where the application is made.
Innovative appearance is provided on the facades with cover profiles in different designs and sizes. It can be used together with all other architectural aluminum system solutions of Saray. The application can be made easily and quickly. It gives a different appearance to the facades thanks to painting in the desired RAL colors, anodizing surface treatment and, alternatively, wood effect color options. With the system that allows the use of Decking profiles of different sizes together, independ- ent designs can be created on the facades. Thanks to its different color and texture alternatives, it leads architects in creating the style facade design they want in build- ings.
Sustainable facades and structures are brought into use with recyclable aluminum profiles. A rich appearance is provided to the structures with ALUnoval.

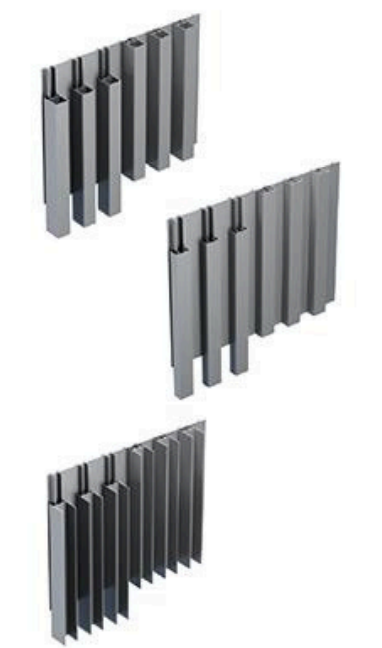

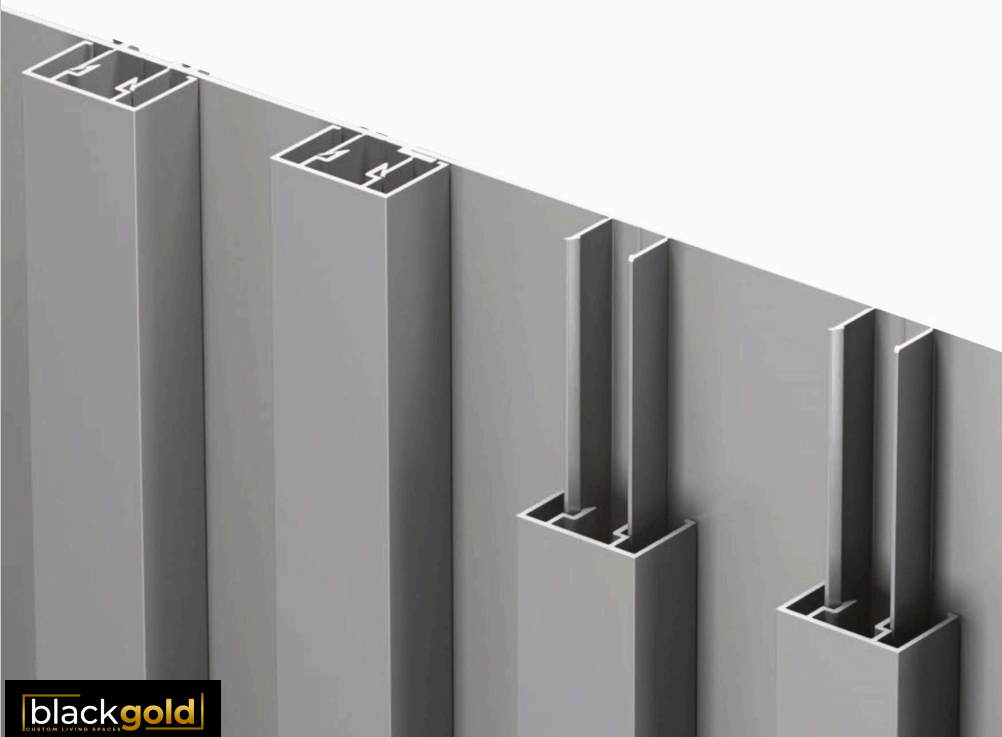

VERTICAL SYSEMS
SVC01: Cover profile with dimensions of 20 mm x 30mm: Elegant facade construction with thin vertical lines.
SVC02: Cover profile with dimensions of 40 mm x 30mm: Gives a new layer to the structure with the dominant profile effect on the facade.
SVC03: Hollow cover profile with dimen- sions of 45 mm x32 mm: Thanks to its hollow structure, different shades and a rich appearance on the facade are provied.
