Folding
Folders – Floor Model
Reduce ready-make time with a BAUM floor model folder, known for ease of operation and years of longevity. Pile, continuous feed or inline – we have a model for you.
BAUM 20 PFF Pile Feed Folder Features:
- New touch Screen control panel
- NEW Baum ifold tutorial standard
- NEW BaumQuick paperless roller gapsets
- New extended mobile delivery stacker
- New built in Batch Counter with variable batch
- NEW micro-adjustment on fold plates
- Exclusive dual front blow bar
- 1-1/8 inch removable slitters shafts
- Quiet-positive helical gear drive
- Non-Contact Pile Height Sensor
- Combination folding rollers
- Total Counter
- Open Access feed Table
- Diagnostic Message Display

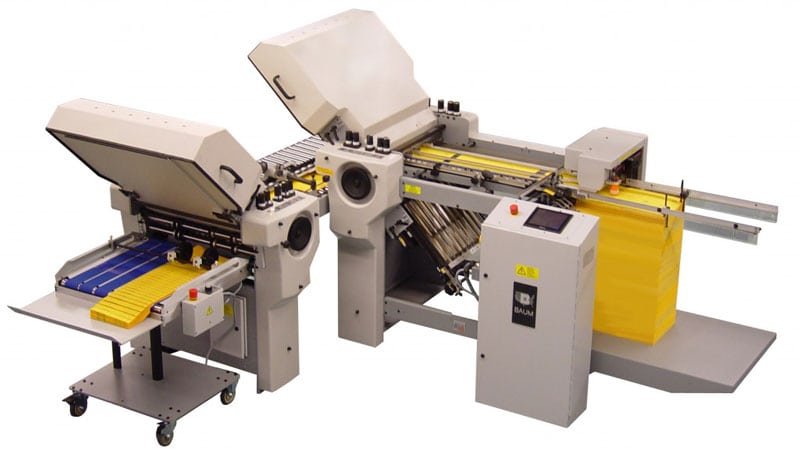

BAUM 20 PFF Pile Feed Folder
The BAUM 20PFF Pile Feed Folder is the future of folding technology.
The ifold Tutorial a unique and exclusive feature that is standard on BAUM Floor Model Folders.
ifold offers numerous features including:
- Unlimited amount of jobs can be created with 30 pre-programmed folds.
- 80 job memory storage for recalling the most often used folds.
- Text and pictorial tutorial screens for most applications for setup, operation, maintenance and troubleshooting.
- Folder production job calculator.
- Inch/Metric numeric display selection.
- Standard inch, metric and custom paper size selection.
- User-defined scheduled maintenance alerts.
- 24/7 folding information availability.
IT’S LIKE HAVING AN INSTRUCTOR AVAILABLE TO YOU 24/7 WHEN EVER YOU NEED HELP.
Specifications:
Maximum Sheet Size: 20.5 x 33 in. (52 x 84 cm)
Minimum Sheet Size: 4 x 6 in. (10.16 x 15.24 cm)
Electrics: 220/3/60 or 380-415/3/50
Maximum Folder Speed: 8200 Inches per min (208.3 m/min)
BAUM 20 CFF Continuous Feed Folder Features:
- New Touch Screen control panel
- NEW Baum ifold tutorial standard
- NEW BaumQuick paperless roller gapsets
- New extended mobile delivery stacker
- New built in Batch Counter with variable batch
- NEW micro-adjustment on fold plates
- Exclusive dual front blow bar
- 1-1/8 inch removable slitters shafts
- Quiet-positive helical gear drive
- Optical lead edge sensor
- Combination folding rollers
- Total Counter
- Low profile ergonomic top feed table height
- Diagnostic Message Display

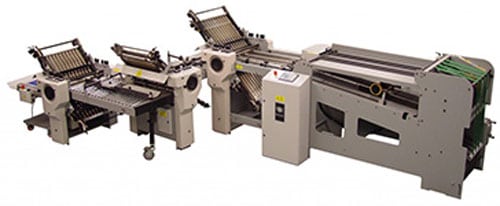

BAUM 20 CFF Continuous Feed Folder
The BAUM 20 Continuous Feed Folder features sturdy, solid-steel frame construction and an exclusive drive system with both forward and reverse direction for easier loading and unloading. Front and side air blow are standard to provide complete separation and floatation on all stocks. The low profile top board design makes loading easier, with less operator fatigue and a high loading capacity. Make-ready time is reduced using the exclusive dual front blow bar and the unique leading-edge sheet sensing device.
Specifications
Maximum Sheet Size: 20.5 x 33 in. (52 x 84 cm)
Minimum Sheet Size: 4 x 6 in. (10.16 x 15.24 cm)
BAUM 20 INF Inline Folder
Features:
The BAUM 20 INF Inline is designed specifically for special applications with forms cutters and bursting.
- BaumQuick paperless roller gapsets
- Extended mobile delivery stacker
- Micro-adjustment on fold plates
- 1-1/8 inch removable slitters shafts
- AC Inverter Drive
- Quiet-positive helical gear drive
- Mobile
- Ideal for Inline use with forms cutters and bursters
- Can add BAUM 8-page and 16-page section folders
BAUM 20 INF Inline Folder
This inline folder is designed specifically for special applications with forms cutters and bursting. The folder is a variation of the Baum 20 pile-feed folder with the feeder and electrical control box removed. This unit is made without any type of sheet feeder. The burster or cutter feeds the sheets onto the register table. This folder is common for mailing applications and is adaptable to fan-folded forms, roll-feeding lines with cutters, etc.
Specifications:
Maximum Sheet Size: 20.5 x 33 in. (52 x 84 cm)
Minimum Sheet Size: 4 x 6 in. (10.16 x 15.24 cm)
Electrics: 220/3/60 or 220/1/60 or 220/1/50 or 380-415/3/50
Maximum Folder Speed: 8200 Inches per min (208.3 m/min)

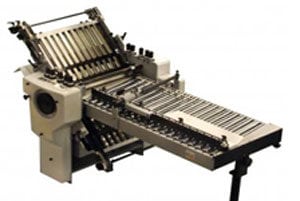

BAUM 20-3-8 Page 2nd Station Folder:
- BaumQuick paperless roller gapsets
- Micro-adjustment of fold plates
- 1-1/8 inch removable slitter shafts
- Quiet-position helical gear drive
- Combination folding rollers are standard
- Mobile design
- Automatic lubrication canister
BAUM 20 CFF Continuous Feed Folder
The BAUM 20 Continuous Feed Folder features sturdy, solid-steel frame construction and an exclusive drive system with both forward and reverse direction for easier loading and unloading. Front and side air blow are standard to provide complete separation and floatation on all stocks. The low profile top board design makes loading easier, with less operator fatigue and a high loading capacity. Make-ready time is reduced using the exclusive dual front blow bar and the unique leading-edge sheet sensing device.
Specifications
Maximum Sheet Size: 20.5 x 33 in. (52 x 84 cm)
Minimum Sheet Size: 4 x 6 in. (10.16 x 15.24 cm)
BAUM 20-3 16 Page 3rd Station Folder Features:
- BAUMQuick paperless roller gapsets
- Micro-adjustment of fold plates
- 1-1/8 inch removable slitter shafts
- Quiet-positive helical gear drive
- Combination folding rollers are standard
- Mobile design
- Automatic Lubrication Canister
BAUM 20-3 16 Page 3rd Station Folder
The BAUM 20 16 Page 3rd Station Folder offers more folding capability for more than just right angle folding applications. The robust designed unit can be added to the BAUM 20 1st and 2nd station fold units. The BAUM 20 third station can also be placed in tandem, in a straight line, to perform more complex roll and accordion folds when more parallel folds are needed.
This quality built folder can also be operated independently using the exclusive selection of BAUM power adapter boxes for inline applications with inkjet tables, forms cutters, creasing machines and more!
Specifications
Maximum Sheet Size: 20.5 x 20.5 in. (52 x 52 cm)
Minimum Sheet Size: 4 x 6 in. (10.16 x 15.24 cm)
Electrics: 220/3/60 or 220/1/60 or 220/1/50 or 380-415/3/50
Maximum Folder Speed: 8200 Inches per min (208.3 m/min)
Floor Model Folder Accessories

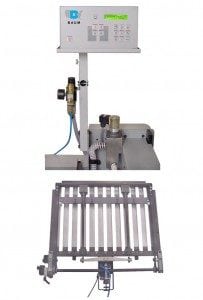

Gatefold Attachment
The BAUM Gatefold Attachment increases versatility and profitability. Can be mounted in the parallel or 8-page folders. The gatefold unit is designed with a precision solid-state timing control for ease of operation and quick job changeovers.
Jam Detector
To detect paper jams as they occur at the end of a folding station, automatically stopping the folder. A diagnostic message will appear on the BAUM 2020 operator panel when a jam is detected.
Remote Control
Enables the operator to control sheet feeding and folder drive from the delivery. It also provides a portable control to assist setup for perfing, scoring and slitting, and for sending test sheets when setting fold plates.
Static Reducer
Consists of two static bars and a power unit (115V / 60 Hz). Neutralizes the electric charges by creating an ionization field around the two bars.
Microperf
Microperf is a special, very fine perforation that tears clean when pulled apart. This perforation is used for stocks that need perforations and must be fed again through copiers and printers.
Segmented Folding Rollers
A core shaft and precision segments to provide the ability to move the segments to create open areas for glue to travel to keep the glue from wiping off onto the rollers. Also used for creating open areas for application where tip on cards and other items may not need to contact the folding rollers. The #1 roller is different from the other roller dues to the fact that the main encoder must be mounted on the end.
Exit Total Count Sensor
Mounts at the exit area of the last folder in the setup. Provides a second count to compare to the first count of the sensor reading at the pile feeder count. Also provides an added bonus of serving as a jam detector if the sheet stays under the sensor to long.
Independent Powerbox Full Features
This power box provides the capability to operate 8-page and 16-page right angle folders independently from the parallel 1st station. The box includes the capability to connect both the 8 and 16 page and operate at the same time, 2-tiered rollaway delivery, hand on delivery, remote control, VDS delivery, and BAUM presser stacker deliveries. It includes an on button, E-stop and overload indicator light. The box is mounted in the field.
Independent Powerbox Limited Features
This control box can power an 8-page or 16-page independently without the need for the 1st station parallel folder. You can also power an 8-page and 16-page together. The box includes plugs for a hang-on stacker and a gatefold control. It also has a power an E-Stop button. It mounts to the crosscarrier of the 8 or 16 page folder using existing holes in the crosscarrier rails that match the holes in the box.
Center Trim Kits
BAUM offers a wide selection of center trim kits. BAUM has center trim kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts. The model of folder determines which diameter slitter shaft is used. The width of the strip to be removed needs to be determined before ordering the kit.
Edge Trim Kits
BAUM offers edge trim kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts. The model of folder determines which diameter slitter shaft is used. The kits include the edge stripper that deflect the waster to the floor when trimming.
Perforating Kits
BAUM offers a wide selection of perforating kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts. The model of folder determines which diameter slitter shaft is used. The perf kit selection includes very coarse to very fine perforations per inch capability.
Scoring Kits
BAUM offers a wide selection of scoring kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts. The model of folder determines which diameter slitter shaft is used. BAUM has developed many different scoring methods to choose from.
Folders – Table Top
Quick to set up. Easy to use. We have various desktop to tabletop folders for all applications and run sizes.
BAUM 714XLT Ultrafold 1st Station
Features:
Rugged Reliability… Compact, Convenient Size
- Non-marking, continuous feeding with bottom feed system
- Toner resistant and static dissipative folding rollers
- Sealed ball bearings, no lubrication needed
- Removable cartridge design slitter shafts
- Gear-driven folding rollers, no slippage during folding
- Automatic roller tensioning
- Quiet pump that handles both the vacuum and the air blow
- UL approved
- Rack and pinion gear side guides on feed table to maintain squareness
- Second pass folding capability with exclusive air control system
- Total counter
- Loads and unloads from the same end of the machine

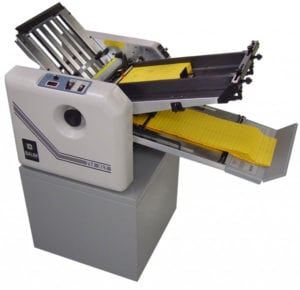

BAUM 714XLT Ultrafold Tabletop Folder 1st Station
The Baumfolder Ultrafold 714XLT air feed tabletop folder combines all the rugged reliability of the larger models in a compact, convenient size. The 714XLT is ready to go to work for you anytime and anyplace you need it. It can easily handle coated stocks as well as high-speed copier and laser-printed stocks.
Specifications:
Maximum sheet size: 14.0 wide x 20.0 in long (35.56 x 50.80 cm)
Minimum sheet size: 3 wide x 5 in long (7.62 x 12.7cm)
Speed: 35,000 sheets per hour of letter size or A4 paper folded
Electrics: 110/1/60 or 220/1/50
BAUM 714XLT 8-Page Right Angle Folder – Tabletop
Features:
The perfect companion to other BAUM 714 models.
- Can operate as a right angle or in tandem for more parallel folds
- Up and down fold plates for more impositions
- Positive drive timing belt crosscarrier roller design
- Toner resistant and static dissipative polyurethane folding rollers
- Sealed ball bearings, no lubrication needed
- Gear-driven folding rollers, no slippage during folding
- Automatic roller tensioning
- Adapts to BAUM 714XLT Ultrafold and previous model BAUM 714 folders

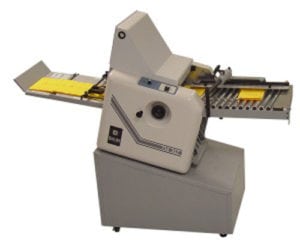

BAUM 714XLT Ultrafold Tabletop Folder 2nd Station
The Baum 714 “Flow-Thru” Tabletop Folder 2nd Station, right angle unit is the perfect companion to your Baum 714XLT and other Baum 714 models. It can be configured for either right-angle folding or in tandem for multiple parallel folds.
An innovative pivoting idler roll design eliminates gap setting requirements. Easy-access slitter shafts allow changing attachments without removing the shafts.
The 714XLT Ultrafold 2nd Station features more effective stack removal for higher productivity, new positive drive cross-carrier design, and “up & down” folding position capability.
Specifications:
Maximum sheet size: 14.0 wide x 14.0 in long (35.56 x 35.56 cm)
Minimum sheet size: 3 wide x 5 in long (7.62 x 12.7cm)
Includes fixed height cart as standard equipment
Electrics: 110/1/60 or 220/1/50

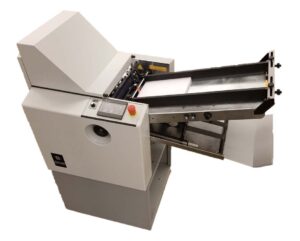

BAUM 714XAP Autofold Tabletop Folder 1st Station
This automated tabletop folder provides reliability, durability and speed in a compact and convenient design.
- Feeds laser, offset and other digital printed stocks
- Air/vacuum feed system handles sensitive imaged stocks to prevent marking
- Requires less floor space than larger floor model folders but can handle a 14 x 20″ nominal sheet and up to a 14 x 25.5″ sheet
- Can fold paper sizes from 3 x 5″ to 14 x 25.5″ long
- Feed table extension that can handle longer sheet lengths, enabling tri-folding of 25.5″ long sheets from brochures, etc.
- Six pre-programmed fold settings
- Programmable memory settings for 20 custom folds
- Batch counter that can count up or count down
- Variable batch data entry
- Total counter
- PLC touch screen control panel with pictographs and color display
- Static reduction devices
- Sound covers standard
- Motorized delivery stacker with independent speed control for the drive
- Flip deflector, non-marking fold plate technology
- Diagnostic messages/fault detection
- Jam detection using input and output sensors
- Multiple languages to select for display: English, Spanish, French, or German
- Units of measurement display in metric or inches
BAUM 714XAP Autofold Tabletop Folder 1st Station
With the 714XAP automated tabletop folder, Baum continues the tradition of providing the most reliable and rugged folder in a compact and convenient design. The BAUM 714XAP offers all of the rugged features of the popular manual setup BAUM 714XLT folder and then adds automation and state-of-the-art features to meet today’s demanding needs along with modern styling.
Specifications:
Maximum sheet size: 14.0 wide x 25.5 in long (35.5 x 64.7 cm)
Minimum sheet size: 3 wide x 5 in long (7.6 x 12.7cm)
Speed: 6,000″/minute (152.4 m/min)
Electrics: 110/1/60 or 220/1/50
BAUM 714XLT Microgluer Folder Gluer Features:
- 3 Segmented urethane folding rollers for all idler rollers
- 2 lines of perforating tooling
- 10 Perforating blades, 64-tooth
- 8 Pullout tire asseblies for the exit shafts
- Mobile cart to enclosed folder air/vacuum pump and mount glue tanks
- Pre-assembled glue system with minimal installation time
- GMS controller with mounting post
- Easy pruge system to clean valves
- Gear-driven folding rollers
- Total sheet counter
- Can be used to create self-mailers and or regular non-glued folds
- Available in eith 110/1/60Hz or 220/1/50Hz electrical configuration
- Loading and unloading at the same end of folder
- Rack and pinion gearing side guides on the feed table

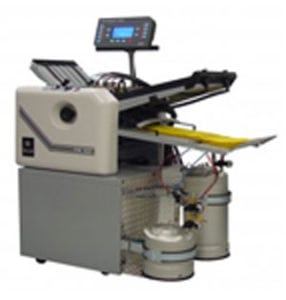

BAUM 714XLT Microgluer Folder Gluer
These complete folder gluer machines use the durable BAUM 714XLT Ultrafold air/vacuum feed folder combined with the easy to use and maintain GMS Microglue control and glue head system. These systems are affordable and use much less floor space than other self-mailer solutions.
There are four models available, the 714XLT-2C, 4C, 4Z and the 714XLT-8Z (shown above)
714XLT-2C has a two-head cold glue system mounted on the feed table and can produce parallel glue lines on the far right and left hand ends of the sheet. This is good for letter and half-fold self-mailers. There is no capability to add glue dots in the middle.
714XLT-4C has a four-head cold glue system mounted on the feed table and can produce parallel glue lines on the far right and left hand ends of the sheet and add two dots in the panel area between the lines to make a more secure self-mailer. This is good for letter and half fold self-mailers that require personal information being secured.
714XLT-4Z has a two-head cold glue system mounted on the feed table and 2 cold glue heads mounted to the #1 fold plate. This model can produce parallel glue lines on the far right and left hand ends of the sheet. The glue can be applied to both sides of the sheet. This machine can produce all of the folds of the 714XLT-2C and can also create self mailers in a “Z” and double parallel fold imposition. This folder does not provide dots in the middle for secured data.
714XLT-8Z has a four-head cold glue system mounted on the feed table and 4 cold glue heads mounted to the #1 fold plate. This model can produce parallel glue lines on the far right and left hand ends of the sheet and add two dots in the panel area between the lines to make a more secure self-mailer. The glue can be applied to both sides of the sheet. This machine can produce all of the folds of the 2C, 4C and 4Z while also completing the ability to provide dots in the middle for secured data.
Specifications
Maximum Sheet Size: 14 in W x 20 in L (35.56 x 50.80 cm)
Minimum Sheet Size: 3 in W x 5 in L (7.62 x 12.7 cm)
Maximum paper weight: 65 lb cover
Maximum side fold – #1 or #2 plate: 13.5″ (34.3 cm)
Minimum size fold: 2.25″ (5.7 cm)
Tabletop Folder Accessories

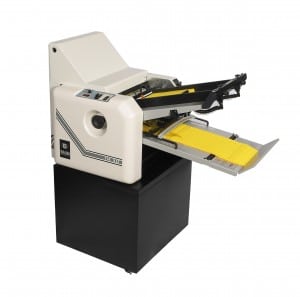

BAUM 714 Sound Cover
For significant reduction of noise levels, use the BAUM 714 Sound Cover. All sound covers are designed for easy access to folder attachments.
BAUM 714 Adjustable Slitter Shafts
These adjustable slitter shafts enable micro-perforating of sheets by adjusting the fine tooth blade depth into the paper stocks. The new, optional cartridge slitter shaft design can be installed in place of the existing fixed center distance slitter shafts. 714 adjustable slitter shaft assemblies can be added to select BAUM 714XLT and 714XA folders; they cannot be added to 714 right angle folders.
BAUM 714XLT Ultrascore
For heavier weight stocks that can curl due to the back-bending in the folding rollers, the Ultrascore attachment for the 714XLT folder is available. This enables the sheet to be run straight through using just the main drive roller and the roller directly above; to drive the sheet in the Ultrascore assembly. the same tooling used on the new 714 adjustable slitter shafts is also used on the Ultrascore attachment.
BAUM 714 Dust Cover
Put the 714 Dust Cover over the entire folder to protect unit from paper dust and other airborne matter when not in use.
BAUM Mirco Perf Kit
A micro-perf is a special, very fine perforation that tears clean when pulled apart. This kit can only be used on the BAUM 714XLT Perf/Score attachment and the 714 Adjustable Slitter shaft options where the slitter shafts have adjustable center distances. This option can not be used on the standard fixed center slitter shafts.
BAUM Adjustable Cart
This adjustable cart is used in place of the standard fixed height mobile cart for the 714XLT Ultrafold 2nd Station right angle folders. The adjustable height cart enables multiple heights to be achieved to operate the 714XLT Ultrafold 2nd station folder in line or at a right angle with various other products including scoring, creasing, folding machines and in line with printing machines.
Folders

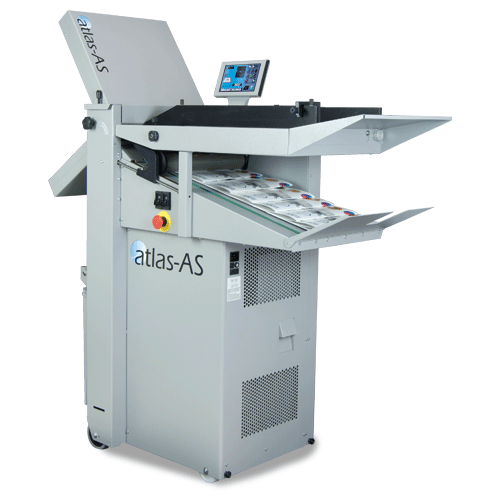

Atlas-AS Air-Feed Document Folder
The ATLAS-AS Air-Feed Document Folder combines high-volume output with user-friendly features in a rugged, small footprint. With variable speed control, it can process up to 27,500 sheets per hour. Its 7” full-color touchscreen control panel allows operators to set up jobs easily and to program an unlimited number of jobs into memory. Fully-enclosed fold plates feature dials to select fold plate position and LED displays accurate to 0.1mm. The fold rollers are made of a durable composite material designed to easily grip high-gloss paper, and are housed in a single patented pull-out cassette.
The powerful air suction feed table handles a wide variety of coated or non-coated stock, up to 26.5” in length, and aligns the sheets prior to folding. It also features a suction chamber to control curled or statically charged paper.
Standard features include a modular perforator/scorer which can also be used as a roller bypass, allowing cover stock to be folded and output flat. The belt-driven outfeed stacker is located on the same side as the infeed, allowing operators to easily operate the Atlas from a single position. Double document and jam detection, batch counting, anti-static brushes, skew and micro adjustments complete the user-friendly package.
The Atlas-AS Air-Feed Folder is ideal for those with big folding jobs and limited space.

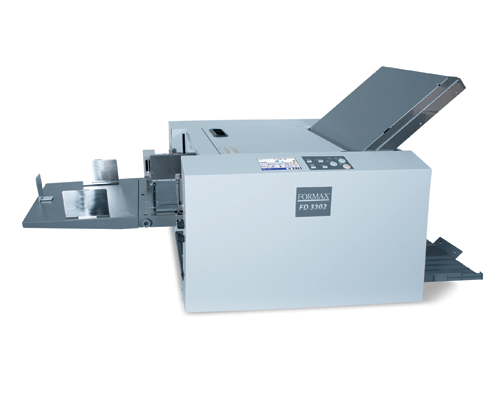

FD 3302 Air Suction Folder
The FD 3302 Air-Suction Document Folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock. The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems. The FD 3302 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint. The feeding system also includes a side air system for enhanced feeding of heavier stocks and larger sheets of paper.
With a speed of up to 18,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications, all at the touch of a button, while optical and ultrasonic double feed detection ensures document integrity.
It’s designed to handle a variety of paper weights and sizes, up to 25.5” long, combining an extended infeed tray with variable fan speed and air flow that can be adjusted independently using the interactive control panel and external adjustment knobs.
User-friendly features include automatic paper size detection and fold plate settings, a 4.3” color touchscreen LCD control panel, six programmed fold settings, and the ability to store up to 30 custom folds. The FD 3302 includes a cross folding guide, a four-digit counter with batch counting capability, four fold rollers for accuracy, and a variety of document security features.
Fully automated and insulated for quiet operation, the FD 3302 is ideal for on-demand printing in the office environment.

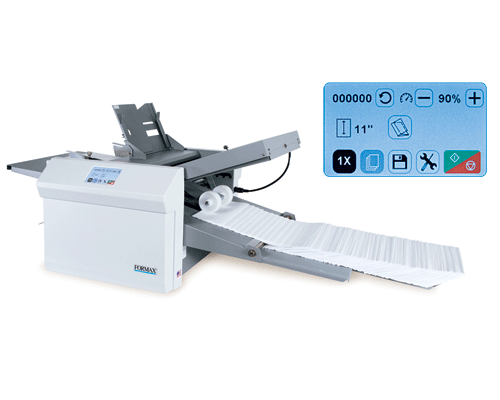

FD 38Xi Fully-Automatic Touchscreen Document Folder
The FD 38Xi Fully Automatic Touchscreen Document Folder is the ideal solution for any business, church, school or print-for-pay center that demands quick and easy set-up. The FD 38Xi features a full-color touchscreen control panel making it extremely easy to use and provides a user interface that is second to none. Fully automated fold plates and AutoStackTM Stacker Wheels provide one touch set-up of the 18 pre-programmed fold settings or for choosing one of the 36 custom folds that can be stored into memory.
The FD 38Xi is fast, folding up to 17,000 pieces per hour! Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 38Xi will fold the 500 sheets in as little as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System.
The dedicated Multi-Sheet Feeder folds up to 4 stapled or unstapled sheets at one time, with the ability to choose standard or custom folds in letter and legal paper sizes.
The large full color touchscreen control panel allows for untrained operators to walk up and start folding with little to no instruction. The FD 38Xi advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.
The FD 38Xi can be paired with the optional V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing.
When it comes to paper folding, no one does it faster or with higher quality than the Formax FD 38Xi!

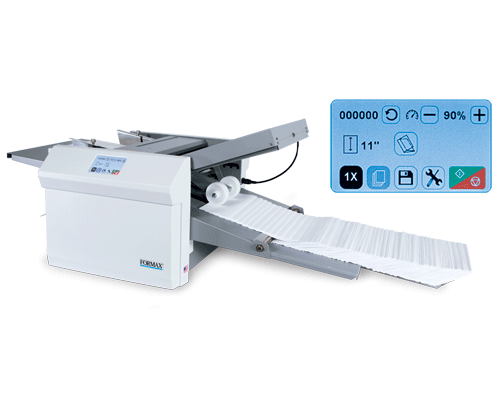

FD 386 Automatic Touchscreen Document Folder
Document folding Machines
The FD 386 Automatic Touchscreen Document Folder offers any business, church, school or print-for-pay center quick, easy set-up, and the versatility to complete a variety of fold jobs in minutes. Jobs are completed exceptionally fast with the FD 386, folding up to 17,000 pieces per hour! Fully automated fold plates provide one touch set-up of the 18 pre-programmed fold settings or for choosing one of the 27 custom folds that can be stored into memory. In addition, the full-color touchscreen control panel makes the FD 386 extremely easy to use with a step-by-step user interface that is second to none.
Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 386 will fold the 500 sheets in as fast as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System.
The patented Multi-Sheet Feeder is an optional feature that allows up to 4 stapled or unstapled sheets to be folded at one time through the dedicated feed system with its own side guides and skew adjustment.
The large full-color touchscreen control panel allows for untrained operators to walk up and start folding with little to no instruction. The FD 386 advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.
The FD 386 can also be combined with the optional Formax V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing.
When it comes to paper folding, no one does it faster or with higher quality than the Formax FD 386!
Streamline Your Document Workflow with Automatic Document Folding Solutions
Welcome to the world of efficient document folding solutions! Formax offers cutting-edge document folding machines and equipment to streamline your printing and mailing processes. Our automatic document folders are designed to save time and effort, allowing you to focus on more critical tasks.
Our flagship product, the FD-386 Automatic Touchscreen Document Folder, is a game-changer in the industry. With its advanced technology and user-friendly interface, this machine makes document folding a breeze. Whether you need to fold brochures, letters, invoices, or any other document type, the FD-386 can handle it precisely and quickly.
Our document folding machines have state-of-the-art features, including adjustable folding settings, multiple fold types, and high-capacity feed trays. This ensures that your documents are folded accurately and consistently every time. Say goodbye to manual folding and hello to increased productivity!
Investing in our document folding equipment is an intelligent choice for businesses of all sizes. Whether you run a small office or a large printing facility, our machines can easily handle your folding needs. By automating the folding process, you can reduce labor costs, minimize errors, and improve overall efficiency.
At Formax, we are committed to providing top-notch document folding solutions that exceed your expectations. Discover the power of automation and streamline your document workflow today. Visit our website to explore our range of document folding machines and find the perfect fit for your business.
FD 346 Touchscreen Desktop Office Folder
The FD 346 Document Folder is a fast, dependable and easy-to-use solution for virtually all folding applications. Its color touchscreen control panel features internationally-recognized symbols in place of text, making it easy for anyone to use. Six popular folds are clearly marked on the fold plates for quick set-up and operation, simply slide the fold stop to the desired fold and go. Additional adjustments can be made with the fine tuning knobs at the end of each fold plate for precision folding.
No need to stand and watch over this folder: operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 346 will fold the 500 sheets in no time at all and hold the folded pieces on its patented telescoping conveyor system until they are retrieved.
The optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time through a dedicated feed system with its own side guides and skew adjustment system.
The FD 346 is capable of processing paper up to 18” in length and up to 12” in width giving it the flexibility to handle a variety of paper sizes. With its customizable jobs, operators can fold in virtually any configuration that requires only two folds. Cross folding adds to the FD 346’s flexibility allowing for additional folds in a second pass.
The innovative touchscreen, simple set-up and operation make the FD 346 an ideal solution for any church, school or small business that is cost conscious but requires the easy operation, versatility and dependability of a more expensive folder.

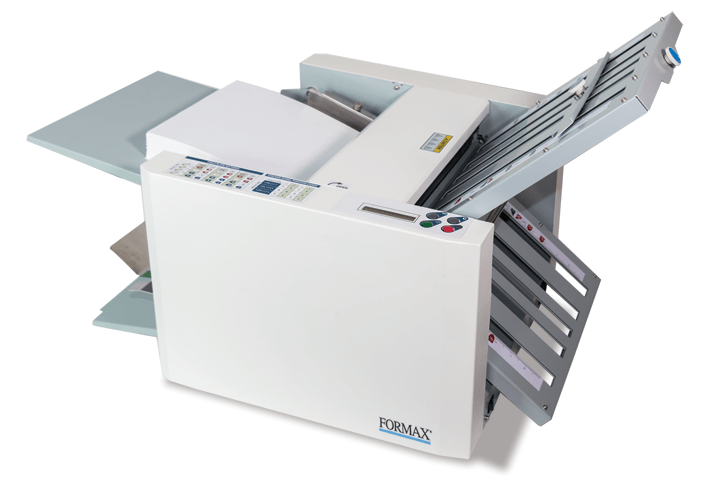

FD 324 Tabletop Document Folder
The FD 324 Document Folder offers an unmatched level of performance and affordability. This rugged, compact unit processes up to 8,600 sheets per hour in 11”, 14” and 17” paper sizes. Removable top and bottom fold plates provide for quick and easy set-up. Fold plates are clearly marked for four common fold settings: Letter, Zig-Zag, Double Parallel, and Half. Quick release fold stops and fine tune adjustment knobs ensure crisp, accurate folds every time.
Designed with ease of operation in mind, it utilizes a drop-in feed system, eliminating the need to fan paper. Simply square the paper stack and load it into the feed tray. The LCD control panel features a 3-digit resettable counter and AutoBatch, which allows users to process a specific number of sheets with a pause between sets, for easy unloading. Its output conveyor includes easily adjustable stacker wheels for neat, sequential stacking of folded pieces.
As with all Formax folders, the FD 324 is constructed with a heavy-duty steel frame and molded, high-impact side covers for durability. The three-tire friction feed accurately pulls paper info the folder, while the skew adjustment allows for moving the feed table left or right, to produce crisp, accurate folds.
Clearly-marked fold settings and simple out-of-the-box operation make it the perfect addition to schools, churches, and offices looking for easy setup and minimal adjustments.

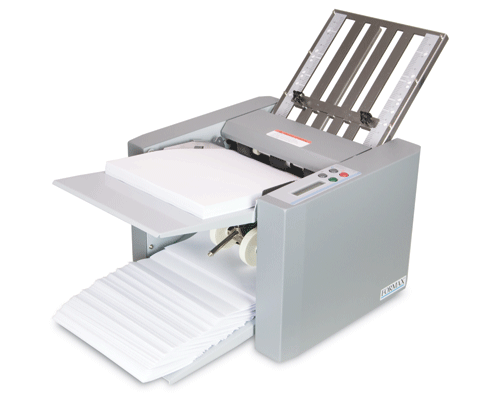

FD 314 Desktop Office Folder
The FD 314 Office Desktop Folder provides an economical solution for low-volume folding projects. It combines a compact footprint with push-button controls, so it’s simple to use, right out of the box! Fold plates are clearly marked for four common folds – letter, zig-zag, half and double parallel – and can be easily adjusted for custom folds. With a three-tire drop-in feed system, it processes 11” and 14” paper at speeds up to 7,700 sheets per hour, and offers a hopper capacity of up to 250 sheets.
The LCD control panel includes a resettable 3-digit counter, and AutoBatch for processing a set number of sheets with a pause between sets. The built-in output conveyor features adjustable stacker wheels for neat, sequential stacking of folded pieces.
User-friendly fold settings and straighforward operation make this folder ideal for churches, schools, and offices that demand quick and easy set-up with minimal adjustment.
FD 324 Tabletop Document Folder

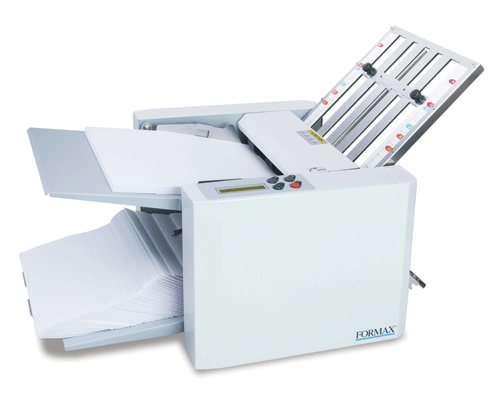

The FD 300 Office Desktop Folder provides an economical solution for low-volume folding projects.
This compact folder processes 11″ and 14″ paper at speeds up to 7,400 sheets per hour, and is pre-marked for four popular folds: C, Z, Half and Double Parallel.
User-friendly features include an LCD control panel with 3-digit resettable counter, AutoBatch for processing sets of documents, and an output conveyor with easily-adjustable stacker wheels for neat sequential stacking of folded pieces.
Clearly marked fold settings and out-of-the-box operation make this folder ideal for churches, schools and small offices that demand quick and easy set-up with minimal adjustment.
