Pressure Seal

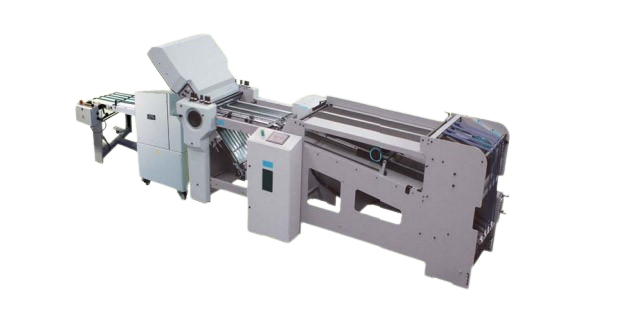

PS800 PRESSURE SEAL FOLDER/SEALER
The most dependable high volume machine available! Multiple configurations to meet any requirement.
Continuous Load
Pile Feed
In-Line
3 Feeding Options

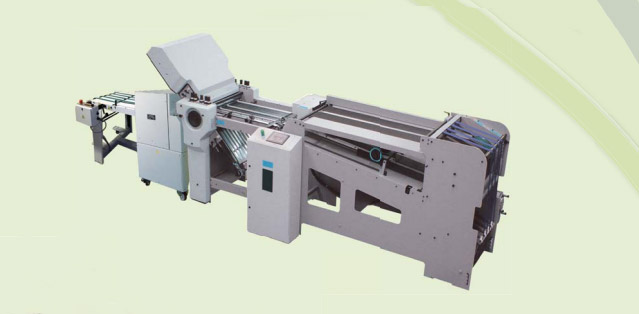

Pile Feeder
- Electronic pile height sensor
- Solid-steel frame construction
- Holds up to 5,000 forms
- Requires only one operator
- Double front blow bar for better feeding

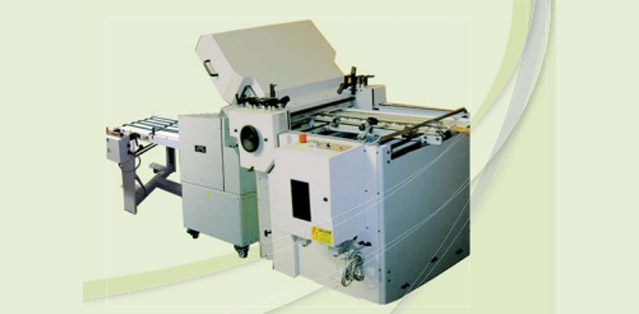

Shingle - Uninterrupted Feeder Continuous Load
- Maximum effeciency
- High loading capacity of 5,000 forms
- Continuous load and unload requires 2 operators
- Solid-steel frame construction
- Both forward & reverse direction for easier loading & unloading
- Front and side air blow provide complete separation & floatation
- “Easy-Set” front blow bar
- Unique leading-edge sheet sensing device

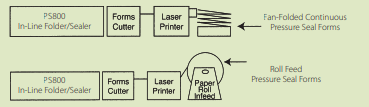

In-Line Fan-Fold Continuous or Jumbo Roll Feed
- In tandum with a roll cutter or burster
- Completely mobile – the folder is equipped standard
with wheels and leveling pads to allow easy transport
and secure positioning to the other units.
Technical Specification
| Processing speed | 40,000 (80,000 2-wide) – 11” forms per hour – variable speed |
| Duty Cycle | unlimited |
| Form size | Max. Width 12” x Max. Depth 28” or 17” x 28” optional |
| Fold configurations | V, C, Z, Eccentric Z, Double Parallel and 1-Part 2-Way |
| Paper weights | Min. 24# – Max. 110# index card |
| Fold Plates | 3 heavy-duty precision fabricated |
| Sealer | Integral 8 roller system – large diameter heavy duty |
| Size | Pile: 180” x 45” – Shingle: 211” x 45” |
| Power | 208v 60Hz 3ph 30A |
| Warranty | 90 days sealer, 1 year parts on folder |
| Optional Accessories: | Code Reading Device, Center Cut, Roll in feed, Fan fold in feed, in-line with various rotary cutters, sound cover |
The PS800 is undoubtedly the most cost effective, high effeciency folder/sealer available today.
With a multitude of enhanced and improved features, the PS800 promises to boost your
productivity – proven to run 24-7 with a processing speed of up to 40,000 8-1/2×11 forms per hour.
2 Sealing Options
12” or 17” Wide Sealing Units
High capacity integral 8 roller system ensures a tightly sealed form.
Single-Wide up to 12”
Two-Wide up to 17”
- Doubles production, 80,000/hour
- Eliminates guillotine cutting
- Cuts laser clicks in half
- Newest technology available
- Slit directly on the folder
- at full production speed
- Specifically designed for a secure fiber
- tear seal across the entire 17 inches

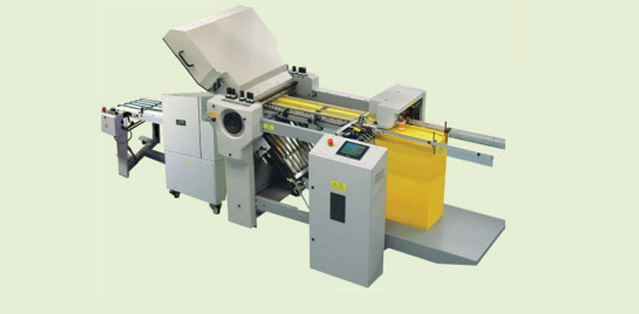

Two-Tiered Mobile Stacker
Ergonomically designed, provides
mobility, height and angle adjustment, with a 48” total collection
length. Controlled speed allows for
easy removal of folded & sealed
pressure seal forms.

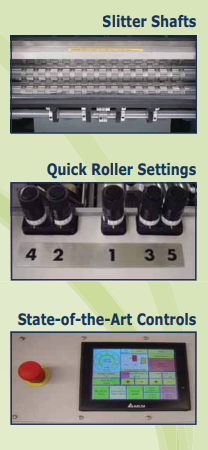

Folding Unit Features
- 3 Heavy-duty precision fabricated fold plates
- Quick paperless roller gapsets
- NEW micro-adjustment on fold plates
- Diagnostic message display
- Touch screen control panel
- Built-in batch counter with NEW variable batch
- Built-in total counter
- Shingle integrity control
- Digital sheet gap control
- 1-1/8” diameter, removable, heavy-duty slitter shafts
- Shown with optional sound cover
Folding Unit Features
This unique and exclusive feature is included as a standard option.
ifold offers numerous features including:
• 80 job memory storage for recalling the most often used folds
• Text and pictorial tutorial screens for most applications for setup,
operation, maintenance and troubleshooting
• Folder production job calculator
• Standard inch, metric and custom paper- size selection
• User-defined scheduled maintenance alerts
• 24/7 folding information availability
• And Much, Much More!
